Product Information

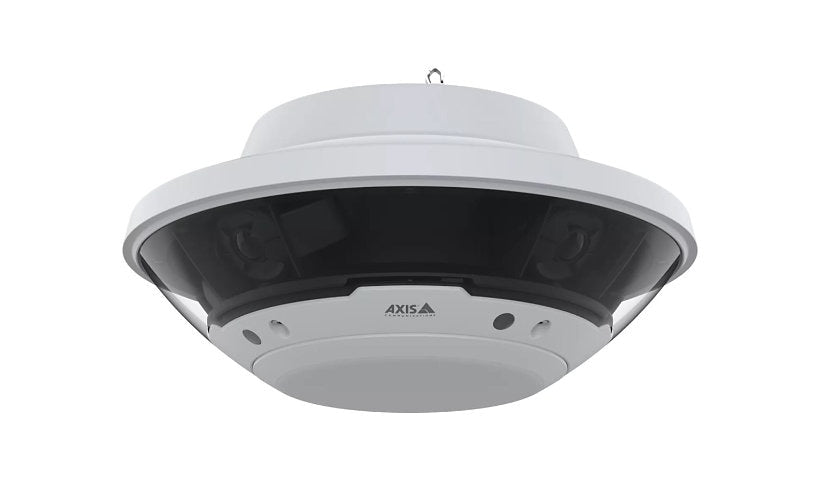

The AXIS Q6300-E is an outdoor panoramic dome with four 5 MP sensors giving a 360 degree view, recording up to 2592 x 1944 at 30 fps. It has Lightfinder 2.0, IR, audio, alarm in and out and Axis Edge Vault, and runs on High PoE Class 6. Vandal and weatherproof, mounting bracket included.
Key Features
- Four 5 MP sensors
- 360 degree view
- Lightfinder 2.0, IR
- Audio, alarm I/O
- Axis Edge Vault
- High PoE Class 6
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q63 Series
Model: Q6300-E
Packaged Quantity: 1
Country: Brazil, Japan, Korea, United States
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3 Level 3
Features: 360° field of view, 95° rotation, Access Control, Active tampering alarm, Adjustable zoom speed, Auto gain control, Auto low-light correction, Axis Edge Vault, Brightness control, Compression, Contrast control, Corridor mode, Day/night threshold, Digest authentication, Digital PTZ function, Double Panorama Capture, Exposure control, Exposure zone, Forensic WDR, Guard tour, HTTPs encryption, Image mirror, Image overlay, IP address filtering, Lens preset positioning, Lightfinder 2.0 technology, NAS-Ready, Noise Reduction, On-screen directional indicator, OptimizedIR, Panorama Capture, Password protection, Pixel Counter Support, Polygon privacy mask, Power over Ethernet, Remote focus, Saturation control, Secure Boot, Sharpness control, Signed firmware, Signed OS, Text overlay, Tone correction, Tour recording, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: AXIS Camera Station, AXIS Companion, AXIS Device Manager, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 8 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 360
Angular Field of View (V, Max, Degree): 84
Focus Modes: Automatic
Infrared LEDs: Yes
Max Focal Length: 3.7 millimetre
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -40 to +75
Motion Detection: Yes
Panning Range (degree): 180
Camera Iris: Fixed iris
Lens Mount: M14 mount
Minimum Illumination: 0 lux - IR, 0.03 lux - B&W - F2.0 - 50 IRE, 0.06 lux - color - F2.0 - 50 IRE
Total Pixels: 4 x 5,000,000 pixels
Image Sensor Size: 1/1.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.0
Sensor Size (metric): 14.9 mm (1/1.7")
Digital Video Capture Resolution: 2592 x 1944, 320 x 320
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 2 second (time unit)
Shutter Speed (Min): 1/66500 second (time unit)
Video Formats: H.264, H.265, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 7.1 inch
Width: 14.2 inch
Depth: 14.2 inch
Weight: 8.82 lbs
Included Items
Included Accessories: Cable gaskets, Cable hole lid, Connector guard, Drill hole template, I/O connector, Mounting bracket, Resitorx TR20 screw bit, View protector
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
