Product Information

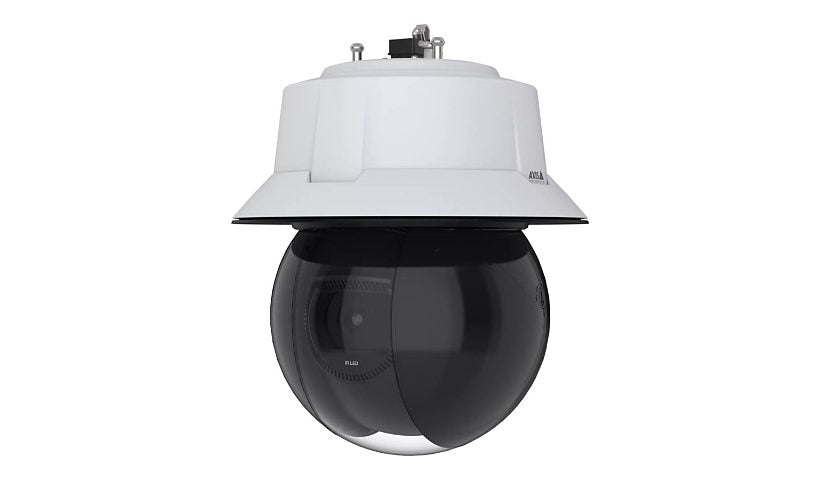

The AXIS Q6325-LE is an outdoor 1080p PTZ recording at up to 60 fps with a 1/2 inch sensor and 6.91 to 214.64 mm lens giving 31x optical zoom. It has built in IR, AXIS Object Analytics, 120 dB dynamic range and 300 presets, works from -50 to 55 C and runs on PoE Class 6. Vandal and weatherproof, weathershield and IP66 connector included.
Key Features
- 1080p up to 60 fps
- 31x optical zoom
- Built in IR
- AXIS Object Analytics
- 300 presets
- PoE Class 6
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q63 Series
Model: Q6325-LE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3 Level 3, TLS 1.2, TLS 1.3
Features: 100 individual polygon and mosaic privacy masks, 120 dB dynamic range, 300 preset positions, 55 dB signal-to-noise ratio, Active tampering alarm, Adaptive Bitrate (ABR), Adjustable zoom speed, Advanced Gatekeeper, Aluminum/polycarbonate housing, ARTPEC-9 chipset, Auto ICR, Autotracking 2, Axis Edge Vault, Brightness control, Centralized certificate management, Color control, Compression, Contrast control, Control queue, Deep learning processing unit (DLPU), Defogging, DORI coverage, Electronic image stabilization, Exposure control, Exposure zone, Forensic WDR, Guard tour, HTTPs encryption, Image freeze, IP address filtering, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), Nadir flip, NAS-Ready, On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Orientation aid PTZ, Secure Boot, Secure keystore, Set new pan 0°, Sharpness control, Signed OS, Tour recording, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS OSDI Zones, AXIS Scene Metadata, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTCIP, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 60.6
Angular Field of View (V, Max, Degree): 36.5
Focus Modes: Automatic
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 214.64 millimetre
Optical Zoom: 31
Digital Zoom: 12
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 450
Tilt: -90 to +20
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2
Angular Field of View (V, Min, Degree): 1.1
Minimum Illumination: 0.001 lux - B&W, 0.06 lux - color
Total Pixels: 2,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2"
Image Sensor Type: Progressive Scan CMOS
Min Focal Length: 6.91 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 1920 x 1080, 320 x 180
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/111000 second (time unit)
Shutter Speed (Min): 1/2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: AV1, AVC, H.264, H.265, HEVC, MJPEG, MPEG-4, MPEG-H
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 10.3 inch
Width: 7.6 inch
Depth: 7.6 inch
Weight: 9.55 lbs
Included Items
Included Accessories: IP66-rated network connector, Paint paper, Template, Weathershield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
