Product Information

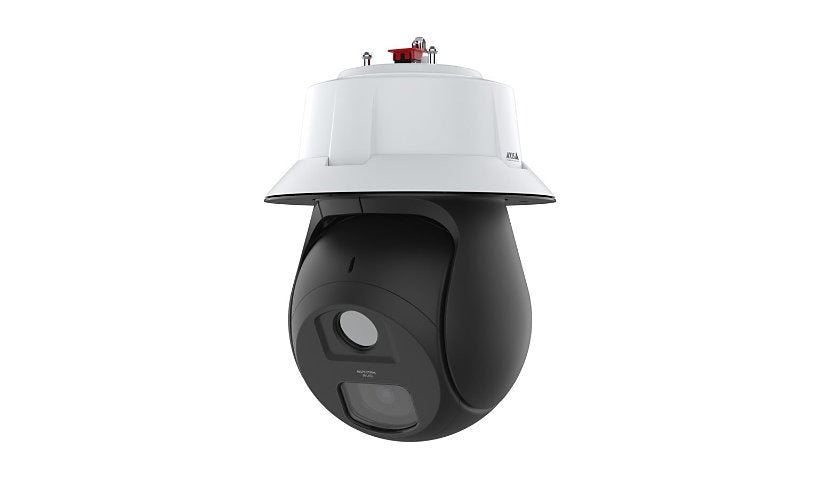

The AXIS Q6411-LE is an outdoor 1080p PTZ recording at 30 fps with a 1/2 inch sensor and 6.91 to 214.64 mm lens giving 31x optical zoom. It has IR up to 492 ft, auto tracking, defog and Forensic WDR, and runs on High PoE Class 6. The power injector is not included. White.
Key Features
- 1080p at 30 fps
- 31x optical zoom
- IR up to 492 ft
- Auto tracking
- Forensic WDR, defog
- High PoE, no injector
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q6411-LE
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Auto tracking, Defog, Forensic WDR, Image freeze, Infrared cut filter, White balance
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Power
Low Voltage Power: High PoE Class 6
Power Device Form Factor: External
Power Device Type: Power injector (not included)
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 59.6
Angular Field of View (V, Max, Degree): 36.3
Focus Modes: Automatic
Infrared Distance: 492 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 214.64 millimetre
Optical Zoom: 31
Digital Zoom: 12
Max Panning Speed (degree/sec): 150
Max Tilting Speed (degree/sec): 150
Tilt: -90 to +20
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 1
Angular Field of View (V, Min, Degree): 0.5
Minimum Illumination: 0 lux - B&W - F1.36 - 50 IRE, 0 lux - IR, 0.001 lux - B&W - F1.36 - 30 IRE, 0.06 lux - color - F1.36 - 30 IRE, 0.09 lux - color - F1.36 - 50 IRE
Video Modes: 1080p
Image Sensor Size: 1/2"
Image Sensor Type: Progressive Scan CMOS
Min Focal Length: 6.91 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 1920 x 1080, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/111000 second (time unit)
Shutter Speed (Min): 1/2 second (time unit)
Video Formats: H.264, H.265, HEVC, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 12 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 13.67 lbs
