Product Information

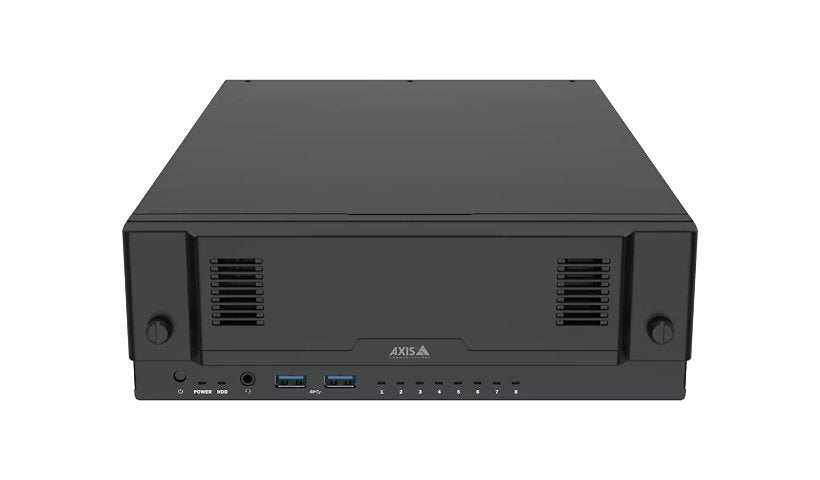

The AXIS S22 Series S2208 Mk II (02807-004) is an 8 channel rack mountable NVR with a built in PoE switch (135 W total budget), an Intel Core i3, 16 GB RAM and 1 x 4 TB drive installed (2 bays). It drives two HDMI outputs at up to 4K or 8K with up to 36 split views, has audio in and out, Secure Boot, signed firmware and TPM 2.0. Rack ears included. TAA compliant.
Key Features
- 8 channels
- PoE, 135 W budget
- 1 x 4 TB installed
- Core i3, 16 GB RAM
- Dual HDMI, 8K
- TPM 2.0, TAA
Product Information
Quantity Installed: 1
Quantity Supported: 2
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS S22 Series
Model: S2208 Mk II
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Capacity: 4 TB
Features: 135 W total power budget, 4K resolution support, 8K resolution support, Secure Boot, Signed firmware, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: USB 2.0 x2, USB 3.2 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2
Power Over Ethernet (PoE): PoE
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 75 watt
Memory and Processor
HDD: 4 TB
CPU: Intel Core i3
RAM: 16 GB
Technical Information
Display Modes: 16 split screens, 25 split screens, 36 split screens, 4 split screens, 9 split screens, Full screen
Networked: Yes
Video Input Ports: RJ-45 x 8 (POE)
Video Channels: 8
Image Resolution: 3840x2160, 7680x4320
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Dimensions and Weight
Height: 3.1 inch
Width: 13 inch
Depth: 9.1 inch
Weight: 12.79 lbs
Included Items
Package Content: Rack ears
Certifications and Listing
Compliant Standards: AS/NZS 62368.1: 2018, AS/NZS CISPR 32 Class A, BIS, BSMI, CNS 15936, CSA C22.2 No. 62368-1 Third Edition, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC, FCC Part 15 B Class A, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC/EN 62368-1 Third Edition, IS 13252, KC, KS C 9832 Class A, KS C 9835, NOM, RCM, UL 62368-1 Third Edition, UL/cUL, VCCI, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
