Product Information

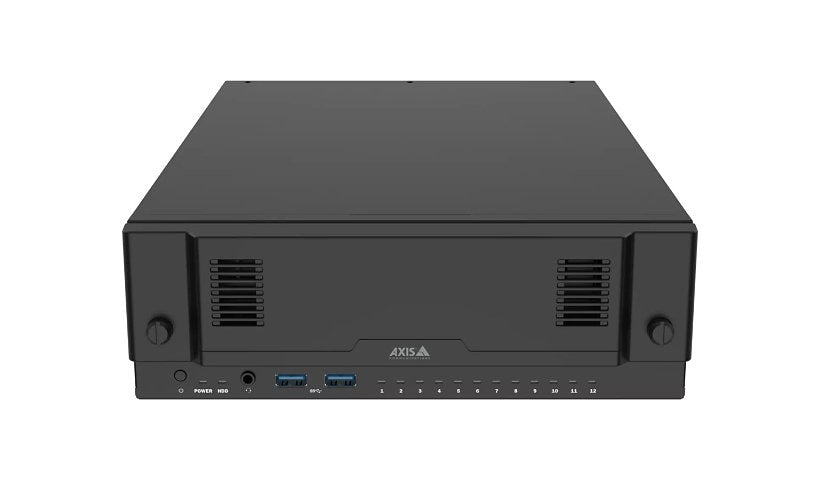

The AXIS S22 Series S2212 Mk II (02808-004) is a 12 channel rack mountable NVR with 12 gigabit PoE ports (135 W total budget), two extra RJ-45 ports and an SFP slot. It runs an Intel Core i3 with 16 GB RAM and 1 x 6 TB drive installed (2 bays), with two HDMI outputs up to 8K, audio in and out, Secure Boot and TPM 2.0. Rack ears included. TAA compliant.
Key Features
- 12 channels
- 12 PoE ports
- 1 x 6 TB installed
- Core i3, 16 GB RAM
- SFP uplink
- TPM 2.0, TAA
Product Information
Quantity Installed: 1
Quantity Supported: 2
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS S22 Series
Model: S2212 Mk II
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 12 (PoE)
Capacity: 6 TB
Features: 135 W total power budget, 4K resolution support, 8K resolution support, Secure Boot, Signed firmware, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: RJ-45 x 2, SFP, USB 2.0 x2, USB 3.2 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2
Power Over Ethernet (PoE): PoE
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 75 watt
Memory and Processor
HDD: 6 TB
CPU: Intel Core i3
RAM: 16 GB
Technical Information
Display Modes: 16 split screens, 25 split screens, 36 split screens, 4 split screens, 9 split screens, Full screen
IP Cameras Supported: 12
Networked: Yes
Video Channels: 12
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Dimensions and Weight
Height: 3.1 inch
Width: 13 inch
Depth: 9.1 inch
Weight: 12.79 lbs
Included Items
Package Content: Rack ears
Certifications and Listing
Compliant Standards: AS/NZS 62368.1: 2018, AS/NZS CISPR 32 Class A, BIS, BSMI, CNS 15936, CSA C22.2 No. 62368-1 Third Edition, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC, FCC Part 15 B Class A, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC/EN 62368-1 Third Edition, IS 13252, KC, KS C 9832 Class A, KS C 9835, NOM, RCM, UL 62368-1 Third Edition, UL/cUL, VCCI, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
