Product Information

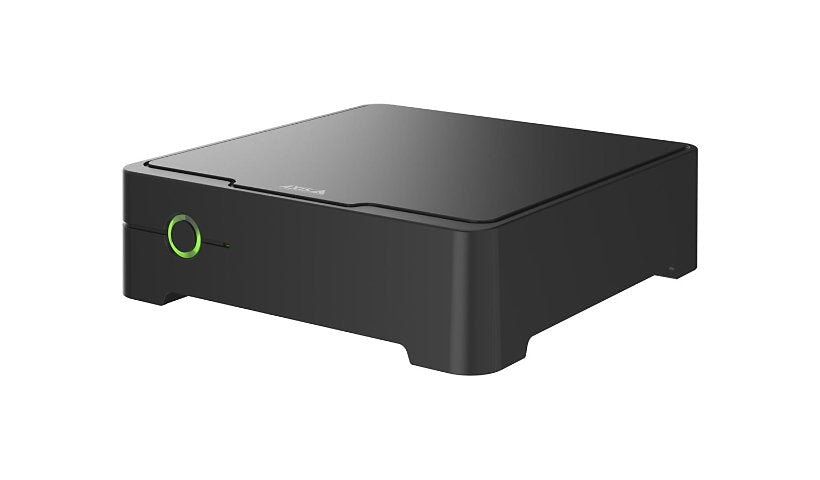

The AXIS S30 Series S3008 Mk II (02766-004) is a compact recorder with a built in 8 port PoE switch for up to 8 Axis cameras, with 1 x 8 TB drive installed. It records H.264 and H.265, has Secure Boot, 802.1x and a gigabit uplink plus USB 3.0, and runs on 100 to 240 V AC. Black. Backed by a 5 year manufacturer limited warranty.
Key Features
- 8 channel recorder
- 8 port PoE switch
- 8 TB installed
- H.264 and H.265
- Secure Boot
- 5 year limited warranty
Product Information
Quantity Installed: 1
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS S30 Series
Model: S3008 MK II Recorder
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Country: United States
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, Bonjour, DHCP, DNS, EAP, HTTP, ICMP, IGMP, IPv4, IPv6, NTP, QOS, SFTP, SMTP, SSH, SSL, TCP/IP, TLS, UDP/IP, UPnP
Network Ports: 10/100Base-TX x 8 (PoE) / 1000Base-T x 1
Capacity: 8 TB
Features: 802.1x authentication, Aluminum housing, Event notification, Password protection, Plastic housing, PoE Class 3, Secure Boot
Connectivity
Additional Ports: USB 3.0 x 1
Power
Input Voltage: 100 - 240 V
Frequency: 50 - 60 Hz
Power Consumption: 180 watt
Technical Information
IP Cameras Supported: 8
Networked: Yes
Compression Format: AAC, H.264, H.265, HEVC, MPEG-4
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Dimensions and Weight
Height: 2.1 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 3.2 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, EAC, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X, IEC/EN 62368-1, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, KC, KN32 Class A, KN35, RCM, UL 62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Manufacturer Limited Warranty: 5 years
