Product Information

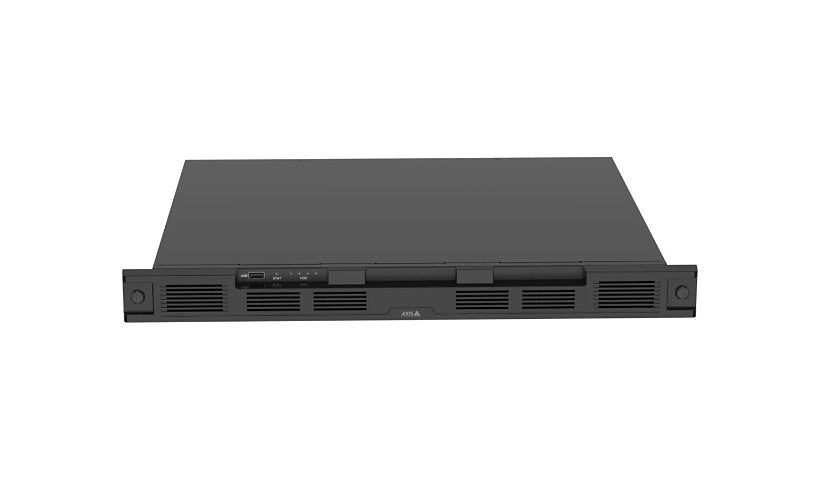

The AXIS S4000 (03217-004) is a 1U rack NVR for 16 channels on AXIS OS with 4 hot swappable drives in default RAID 5, a 305 W PoE budget, SFP and RJ-45 ports, Axis Edge Vault, Secure Boot and signed firmware, up to 256 Mbps recording. Quick specs list 4 x 8 TB while the description says 16 TB total, please confirm. Rails, front cover and power cable included. TAA compliant.
Key Features
- 16 channels
- 4 drives, RAID 5
- 305 W PoE budget
- Axis Edge Vault
- 1U rack, rails
- TAA compliant
Product Information
Quantity Installed: 4
Quantity Supported: 4
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: S4000
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black NCS S 9000-N
Color Category: Black
Country: United States
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, Bonjour, DHCPv4, DHCPv6, DNS, DNSv6, HTTP, HTTP/2, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, NTP, NTS, RTSP, SFTP, SMTP, SSH, TCP, TLS, UDP, UPnP, USGv6
Network Ports: 10/100/1000Base-T / SFP
Features #2: Recording data rate up to 256 Mbps
Capacity: 8 TB
Operating System Edition: AXIS OS
Features: 305W PoE power budget, 802.1x authentication, AES encryption, Axis device ID, Axis Edge Vault, Default RAID 5, Digest authentication, Event notification, Hot swappable, Password protection, Secure Boot, Secure keystore, Signed firmware, Support RAID 0, Support RAID 1, Support RAID 10, Support RAID 5, Support RAID 6, Trusted Platform Module 2.0 (TPM 2.0)
Features: Recording data rate up to 256 Mbps
Connectivity
Additional Ports: RJ-45 x 2, SFP, USB 2.0, USB 3.0 x 1
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 31 watt
Technical Information
IP Cameras Supported: 16
Networked: Yes
Compression Format: AAC, AVC, H.264, H.265, HEVC, MPEG-4, MPEG-H Part 2
Video Channels: 16
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 19.1 inch
Depth: 15.8 inch
Weight: 20.33 lbs
Included Items
Package Content: Front cover, Power Cable, Rack mount rails, Rubber feet, Screws
Certifications and Listing
Compliant Standards: AS/NZ CISPR 32 Class A, AS/NZS 62368.1: 2018, CAN/CSA-C22.2 No.62368-1, EN 55035 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ETSI EN 303 645, FCC Part 15 B Class A, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60529 IP20, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, IRCM, NIST SP500-267, UL/cUL, VCCI, X.509
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
