Product Information

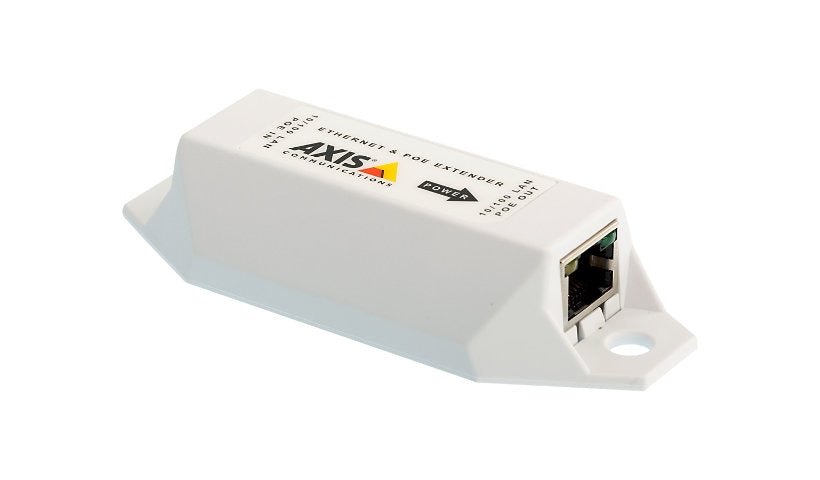

The Axis T8129 (5025-281) is an inline PoE extender that lets you go beyond the 100 m Ethernet limit for a camera, adding up to 100 m more over Cat5e or Cat6 at 10/100 Mbps. It supports 802.3af and 802.3at and is listed for many Axis cameras.
Key Features
- 2 x 10/100 RJ-45 (in/out)
- Adds up to 100 m (328 ft)
- 802.3af and 802.3at
- Link and PoE LEDs
- For Axis cameras
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: T8129 PoE Extender
Product Type: Repeater
Compatibility Specs: AXIS AXIS P3245-LVE-3 License Plate Verifier Kit, C1410, D3110, M3067-P, M3068-P, M3085-V, M3086-V, M4215-V, M4308-PLE, M4328-P, M5075-G, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q1656, Q1656-B, Q1715, Q1942-E PT Mount, Q1951-E, Q1952-E, Q6100-E 50 Hz, Q6315-LE 50 Hz, Q6315-LE 60 Hz, W400 ¦ AXIS M42 Series M4215-LV, M4218-LV ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 100 MBps
Max Transfer Distance: 328 ft
Connectivity
Interface Provided: 2 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Power Over Ethernet (PoE): PoE
Left Connector SD Type: RJ-45
Right Connector Type (SD): RJ-45
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 85% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, PoE
Dimensions and Weight
Height: 0.9 inch
Width: 4.1 inch
Depth: 1.6 inch
Weight: 1.59 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: EN55022 Class B, EN55024, FCC, FCC Part 15 B, Plug and Play, RoHS, WEEE
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
