Product Information

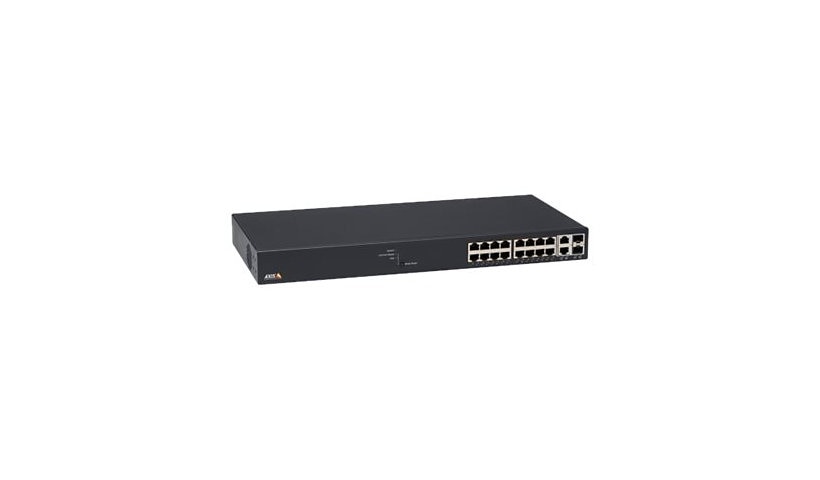

Axis' T8516 is a managed PoE+ switch for surveillance systems, with 16 Gigabit PoE+ ports and two combo RJ-45/SFP ports. It shares a 240 W PoE budget and has a web interface with a topology view of connected devices, and it sits on a desk or mounts in a rack.
Key Features
- 16 x 10/100/1000 RJ-45 PoE+ ports
- 2 x combo RJ-45/SFP ports
- 240 W PoE budget
- 36 Gbps switching, 26.8 Mpps
- Web interface with topology view
- Desktop or rack mount
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: T8516
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH
Routing Protocol: IGMP
Performance: Switching capacity: 36 Gbps, Throughput: 26.8 Mpps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, Administrator's password, ARP support, Bridge protocol data unit (BPDU), DHCP server, DHCP snooping, DNS server, IP address filtering, IPv4 support, IPv6 support, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, NTP server, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, VLAN support
Connectivity
Port Quantity: 16
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10/100/1000/SFP
Interface Provided: 16 x 1000Base-T RJ-45, 2 x 1000Base-T RJ-45/SFP
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 285 watt
PoE Budget: 240 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 6.61 lbs
Included Items
Included Accessories: 2-port dust covers(SFP), 4 rubber feet
Certifications and Listing
Compliant Standards: ANATEL, EAC, EN 55032 Class A, EN 60950-1, EN55024, FCC Part 15 B Class A, ICES-003 Class A, IEC 60950-1, JATE, KCC, RCM, REACH, RoHS, S Mark, SASO, UL 60950-1, VCCI Class A, WEEE
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
