Product Information

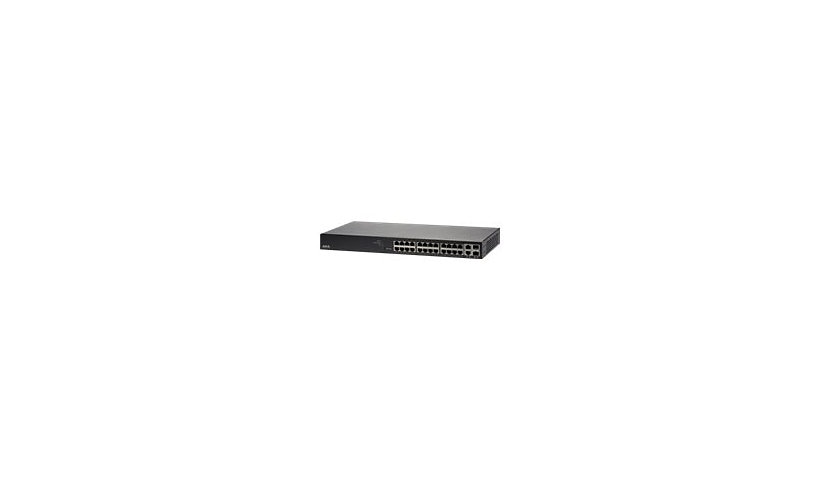

Axis' T8524 is a PoE+ switch for surveillance installs, with 24 Gigabit PoE+ ports at up to 30 W and two combo Gigabit RJ-45/SFP ports. It shares a 370 W PoE budget, has 6 kV surge protection and a web interface with a topology view, and comes with a 19 inch rack kit.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 2 x combo Gigabit RJ-45/SFP ports
- 370 W PoE budget
- 52 Gbps switching, 38.7 Mpps
- 6 kV surge protection
- 19 inch rack ears and rubber feet included
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: T8524
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Remote Management: HTTP, HTTPS, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: IGMP
Performance: Switching capacity: 52 Gbps, Throughput: 38.7 Mpps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: 6KV Surge protection, 802.1x authentication, Access Control List (ACL) support, ARP support, Bridge protocol data unit (BPDU), DHCP server, DHCP snooping, DHCP support, HTTPS encryption, Internet Control Message Protocol (ICMP), IP address filtering, LLDP support, LLDP-MED, Metal housing, Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Private VLAN, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, VLAN support
Connectivity
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 2 x Gigabit LAN RJ-45/SFP, 24 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Frequency: 50/60 hertz
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 7.05 lbs
Included Items
Included Accessories: 19" ear rack kit, 4 rubber feet
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, EN 55032 Class A, EN55024, FCC Part 15 B Class A, ICES-003 Class A, IEC/EN/UL 60950-1, JATE, SASO, VCCI Class A
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, UPnP
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
