Product Information

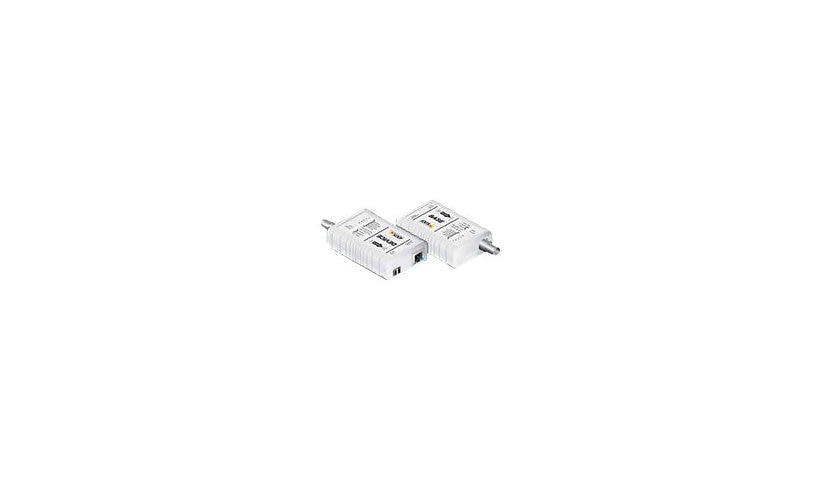

The AXIS T8640 is a media converter, not a network card, that carries Ethernet and PoE+ over existing coax video cable. It links a 10/100 RJ-45 port to a BNC coax connection, so network cameras can be installed where long or hard to reach coax runs are already in place, turning an analog setup into an IP one. It can be mounted on a wall or DIN rail. The quick specs describe it as a pack of 2. Listed cameras include AXIS M3067-P, M3068-P, P1346, P1385-E, P1455-LE, P5534, Q1656, Q1715 and others.
Key Features
- Media converter, not a NIC
- Ethernet and PoE+ over coax
- RJ-45 to BNC
- 10/100 Mbps
- Wall or DIN rail mount
- For AXIS network cameras
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: T8640 Ethernet Over Coax Adaptor PoE+
Product Type: Media converter
Compatibility Specs: AXIS C1410, D3110, M3067-P, M3068-P, M3085-V, M3086-V, M5075-G, P1346 Network Camera, P1346 Network Camera (Barebone), P1346-E Network Camera, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P5534 PTZ Dome Network Camera, P5534-E PTZ Dome Network Camera, Q1656, Q1656-B, Q1715, Q1942-E PT Mount, W400
Packaged Quantity: 2
Network and Communication
Transmission Medium: Coax
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 100 MBps
Features: DIN rail mountable, Full duplex mode, Wall mountable
Connectivity
Interface Provided: 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female, 1 x network - BNC female
Power Over Ethernet (PoE): PoE
Left Connector SD Type: RJ-45
Right Connector Type (SD): BNC
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, PoE
Dimensions and Weight
Height: 4.1 inch
Width: 2.1 inch
Depth: 0.9 inch
Weight: 4.94 ounce
Certifications and Listing
Compliant Standards #2: EN55022 Class A, EN55022 Class B, EN55024, FCC CFR47 Part 15 B, RoHS, WEEE
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: EN55022 Class A, EN55022 Class B, EN55024, FCC CFR47 Part 15 B, RoHS, WEEE
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
