Product Information

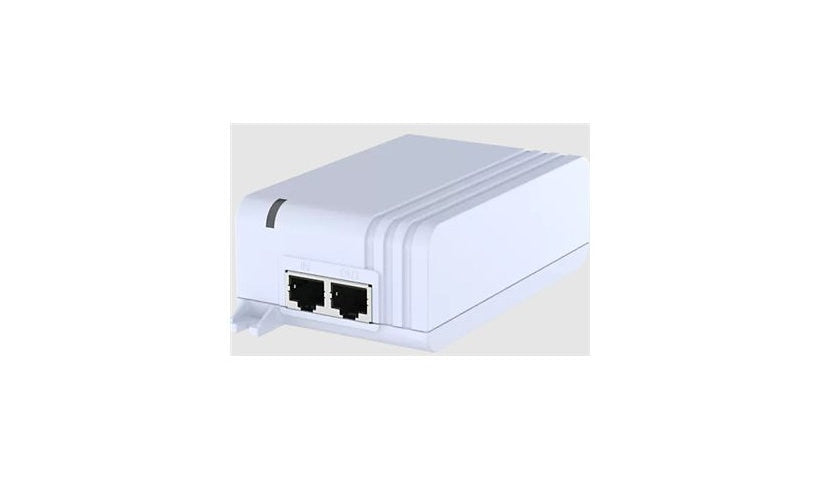

The Axis TU8006 (03223-001) is a single port Gigabit midspan that delivers up to 60 W at 56 V DC under 802.3bt. It mounts on a DIN rail or stands alone, runs from 100 to 240 V AC and works from 14 to 113 °F. White finish.
Key Features
- 1 x Gigabit PoE output, up to 60 W
- IEEE 802.3bt, 56 V DC
- AC 100-240 V input
- DIN rail or external mount
- Operating range 14 to 113 °F
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: TU8006
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Remote Management Interface: Ethernet 10/100/1000
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): High PoE
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Device Features: LED indicators, Wall mountable
Input Connector Type: Power IEC 60320 C14
Power Output Connectors Details: 1 x RJ-45
Power Provided: 60 watt
Form Factor (Power Device): DIN rail mountable / external
Provided Voltage: DC 56 volt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Dimensions and Weight
Weight: 8.29 ounce
Certifications and Listing
Compliant Standards: BSMI, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 62368-1, KS C 9832 Class A, UL 62368-1, VCCI Class A
Compliant Standards: IEEE 802.3bt
ENERGY STAR Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
