Product Information

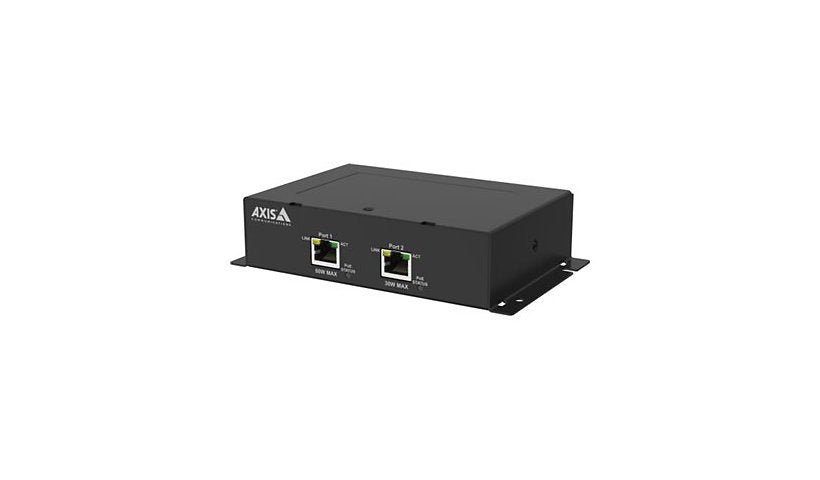

The Axis TU8010 (02726-001) extends a Gigabit PoE link another 100 m (328 ft) and passes up to 60 W PoE++. It has a plenum rated metal housing, mounts on a wall, ceiling or DIN rail and works from -40 to 149 °F. It is listed for the AXIS P1385-E.
Key Features
- 2 x Gigabit RJ-45 (in/out)
- Passes up to 60 W, 802.3af/at/bt
- Adds up to 100 m (328 ft)
- Plenum rated metal housing
- Operating range -40 to 149 °F
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: TU8010
Product Type: Network/power extender
Compatibility Specs: AXIS P1385-E
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 10/100/1000Base-T
Data Transfer Rate: 1 GBps
Max Transfer Distance: 328 ft
Features: Metal housing, Plenum-rated
Connectivity
Interface Provided: 1 x Ethernet 10/100/1000Base-T - RJ-45 female x 2 - 60 W
Power Over Ethernet (PoE): PoE++
Left Connector SD Type: RJ-45
Right Connector Type (SD): RJ-45
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling / DIN rail mountable
Status Indicators: PoE, Power
Dimensions and Weight
Height: 1.5 inch
Width: 6.3 inch
Depth: 3.9 inch
Weight: 19.4 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Compliant Standards: AS/NZS CISPR 32 Class A, BFR-free, BSMI, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free, CNS 13438, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, IEC/EN/UL 62368-1, KC, KS C 9832 Class A, KS C 9835, NOM-001, PVC-free, RCM, REACH 1907/2006/CE, ROHS Directive 2011/65/EU, UL 2043, UL/cUL, VCCI, VCCI Class A
ENERGY STAR Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
