Product Information

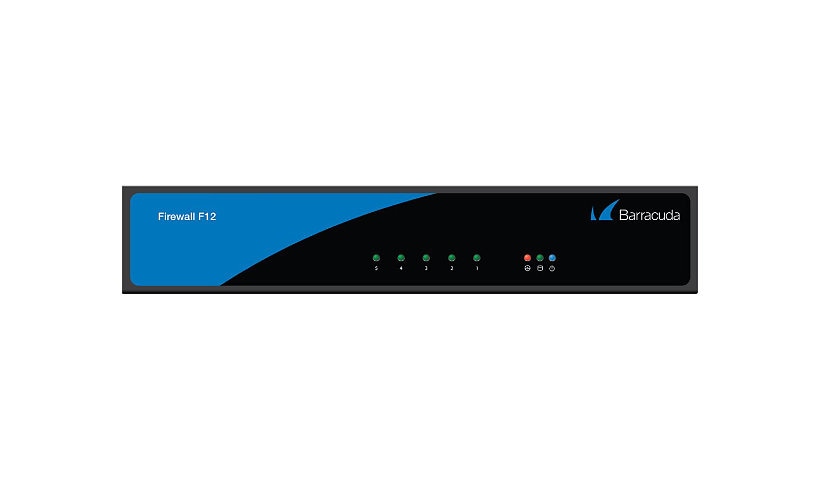

The Barracuda CloudGen Firewall F12 is an entry level next generation firewall with SD-WAN for small sites, rated at 1.2 Gbps firewall (UDP), 400 Mbps IPS, 250 Mbps NGFW, 230 Mbps threat protection and up to 220 Mbps VPN (AES-128, TINA), with up to 80,000 sessions, 8,000 new sessions per second and 5 to 75 users. It has five Gigabit RJ-45 ports, a console, four USB 3.0 ports, 2 GB of RAM and 80 GB of storage, with zero touch deployment.
Key Features
- 1.2 Gbps firewall (UDP)
- 250 Mbps NGFW
- 80,000 sessions
- 5 x 1G RJ-45
- For 5 to 75 users
- Zero touch deployment
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall F-Series
Model: F12
Product Type: Firewall
Packaged Quantity: 1
Color Category: Black, Blue
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: ARP, DDNS, DHCP, DNS, FTP, IPSec, L2TP, POP3, PPPoA, PPPoE, PPTP, SMB, SMTP, SMTPS, TCP/IP, UDP/IP
Remote Management: CLI, SMTP, SMTPS, SNMP, SSH
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Encryption: 128-bit AES, 256-bit AES, Blowfish, CAST, DES, PKI, SSL, TLS, Triple DES
Capacity: Concurrent sessions: 80000, Maximum number of users: 5 - 75, New sessions per second: 8000
Network Device: Firewall throughput (UDP): 1.2 Gbps, IPS throughput (UDP): 400 Mbps, NGFW throughput: 250 Mbps, Threat protection throughput: 230 Mbps, VPN throughput (128-bit AES, TINA): 220 Mbps, VPN throughput (256-bit AES, GCM): 170 Mbps, VPN throughput (256-bit AES, MD5): 200 Mbps, VPN throughput (256-bit AES, SHA-256): 170 Mbps, VPN throughput (256-bit AES, TINA): 200 Mbps
VoIP: Yes
VoIP Protocols: H.323, SCCP, SIP
Operating System Required: Apple MacOS X 10.5 - 10.11, Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10
Features: Anti-spyware protection, Anti-virus protection, Application filtering, ARP support, Bandwidth control, Black list, Bridge mode, Built-in hardware crypto accelerator, DDos attack prevention, Deep Packet Inspection (DPI), DHCP client, DHCP relay, DHCP server, DNS caching, DoS attack prevention, E-mail notification, E-mail protection, Event notification, Fanless, Firewall protection, Flooding detection, FTP proxy, High Availability, HTTP proxy, Identity Awareness, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Jumbo Frames support (up to 9000 bytes), Load balancing, Manageable, NAT support, PAT support, Quality of Service (QoS), Reset button, Routing, SMS remote control, SNMP trap, SSH support, Stateful Packet Inspection (SPI), Syslog support, Traffic replication, Traffic shaping, Transparent Proxy, URL filtering, Virtual Routing and Forwarding (VRF), VLAN support, VoIP support, VPN support, Web Filtering, Web threat protection, White list
Connectivity
Ports: 5
Interface Provided: 1 x console - RJ-45, 4 x USB 3.0 - Type A, 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Intel
RAM Installed: 2 GB
Hard Drive Capacity: 80 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Status Indicators: HDD activity, Link/activity, Power, Status
Built-in Devices: LED panel
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 6 inch
Weight: 4.41 lbs
Included Items
Included Accessories: USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.1Q, X.509
Warranty
Service Activation: No
