Product Information

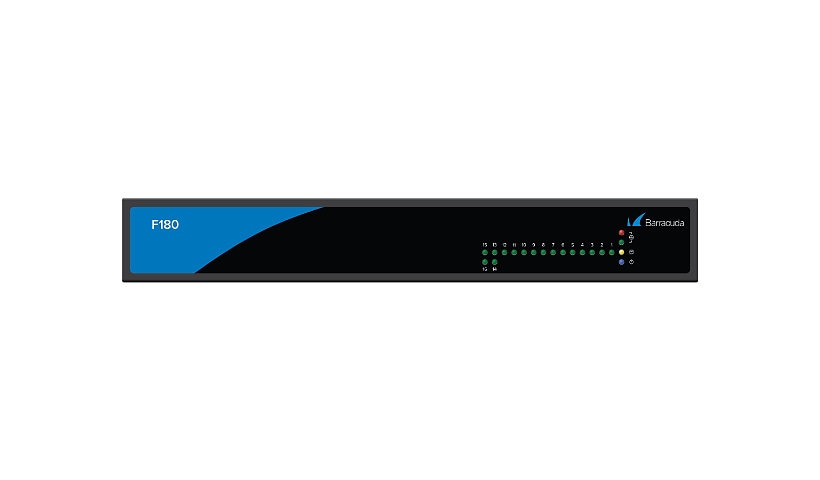

This is the cold spare version of the Barracuda CloudGen Firewall F180B, kept on hand as a standby replacement. The F180B is a desktop next generation firewall with SD-WAN and built in Wi-Fi (802.11b/g/n), rated at 3.2 Gbps firewall (UDP), 1 Gbps IPS, 1.2 Gbps NGFW and up to 800 Mbps VPN, with up to 150,000 sessions, 10 VRF instances and 75 to 150 users. It has twelve Gigabit RJ-45 ports, four SFP ports, two antennas, a console, two USB 3.0 ports, 4 GB of RAM and 100 GB of storage.
Key Features
- Cold spare unit
- 3.2 Gbps firewall (UDP)
- 1.2 Gbps NGFW
- 12 x 1G RJ-45 + 4 x SFP
- Built in Wi-Fi
- Desktop, about 45 W
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall F-Series
Model: F180B
Product Type: Firewall
Packaged Quantity: 1
Color Category: Black, Blue
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: ARP, DDNS, DHCP, DNS, FTP, IPSec, L2TP, POP3, PPPoA, PPPoE, PPTP, SMB, SMTP, SMTPS, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, HTTPS, SMTP, SMTPS, SNMP, SSH
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Capacity: Concurrent sessions: 150000, Maximum number of concurrent users: 75 - 150, New sessions per second: 10000, VRF instances: 10
Wireless LAN: 802.11b/g/n
Network Band: 2.4 GHz
Network Device: Firewall throughput (UDP): 3.2 Gbps, IPS throughput (UDP): 1 Gbps, NGFW throughput: 1.2 Gbps, Threat protection throughput: 1 Gbps, VPN throughput (128-bit AES, TINA): 800 Mbps, VPN throughput (256-bit AES, GCM): 350 Mbps, VPN throughput (256-bit AES, MD5): 650 Mbps, VPN throughput (256-bit AES, SHA-256): 300 Mbps, VPN throughput (256-bit AES, TINA): 730 Mbps
VoIP: Yes
VoIP Protocols: H.323, SCCP, SIP
Features: Anti-malware protection, Anti-spam protection, Anti-spyware protection, Anti-virus protection, Application filtering, ARP support, Bandwidth control, Black list, Bridge mode, Built-in hardware crypto accelerator, DDos attack prevention, Deep Packet Inspection (DPI), DHCP client, DHCP relay, DHCP server, DNS caching, DoS attack prevention, E-mail notification, E-mail protection, Event notification, Fanless, Firewall protection, Flooding detection, FTP proxy, High Availability, HTTP proxy, Identity Awareness, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Jumbo Frames support (up to 9000 bytes), Load balancing, Manageable, NAT support, PAT support, Quality of Service (QoS), Reset button, Routing, SMS remote control, SNMP trap, SSH support, Stateful Packet Inspection (SPI), Syslog support, Traffic replication, Traffic shaping, Transparent Proxy, URL filtering, Virtual Routing and Forwarding (VRF), VLAN support, VoIP support, VPN support, Web Filtering, Web threat protection, White list
Edition: Cold Spare
Connectivity
Interface Provided: 1 x console - RJ-45, 12 x 1000Base-T - RJ-45, 2 x antenna, 2 x USB 3.0 - Type A, 4 x Ethernet 1000 - SFP
Power
Device Type: External power adapter
Required Voltage: AC 90-264 volt
Power Consumption Operational: 45 watt
Power Provided: 90 watt
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 100 GB
Port Expansion Hard Drive Type: SSD
Physical Characteristics
Form Factor: Desktop
Status Indicators: HDD activity, Link/activity, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 11.8 inch
Depth: 8.6 inch
Weight: 5.07 lbs
Included Items
Included Accessories: 2 L-shape rack mount brackets, 2 x Wi-Fi antennas, USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards #2: EMC 2014/30/EU, EN 300 328 V2.1.1, EN 301 489-1 V2.2.0, EN 301 489-17 V3.2.0, EN 301 893 V2.1.1, EN 55024:2010 Class A, EN 55024:2010+A1:2015, EN 55032:2015+AC:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 62311:2008, FCC, LVD 2014/35/EU, RED 2014/53/EU, RoHS, RoHS 2011/65/EU, WEEE 2012/19/EU
Compliant Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, X.509
Compliant Standards: EMC 2014/30/EU, EN 300 328 V2.1.1, EN 301 489-1 V2.2.0, EN 301 489-17 V3.2.0, EN 301 893 V2.1.1, EN 55024:2010 Class A, EN 55024:2010+A1:2015, EN 55032:2015+AC:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 62311:2008, FCC, LVD 2014/35/EU, RED 2014/53/EU, RoHS, RoHS 2011/65/EU, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
