Product Information

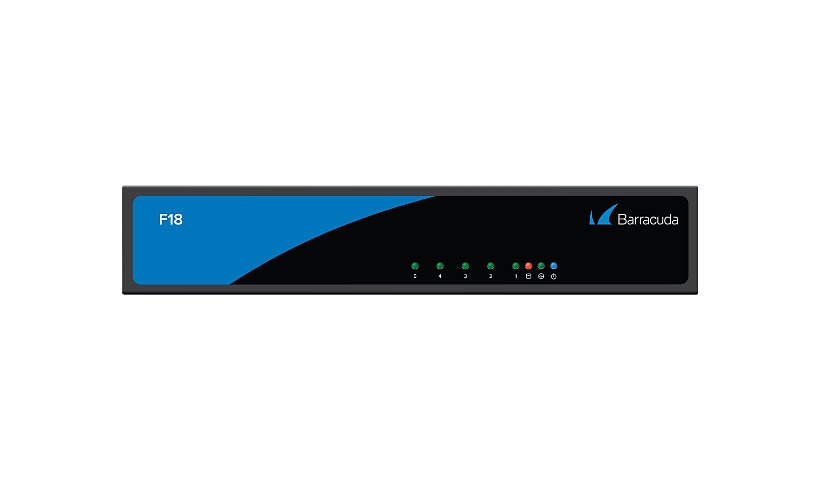

The Barracuda CloudGen Firewall F18B is a desktop next generation firewall with SD-WAN for small multi site deployments, rated at 2 Gbps firewall, 600 Mbps IPS, 400 Mbps NGFW, 380 Mbps threat prevention and up to 720 Mbps VPN (AES-128, TINA), with up to 80,000 sessions, 12,000 new sessions per second and 50 to 100 users. It has five Gigabit RJ-45 ports, a console, two USB 3.0 ports, 4 GB of RAM and 80 GB of storage.
Key Features
- 2 Gbps firewall
- 400 Mbps NGFW
- 80,000 sessions
- 5 x 1G RJ-45
- For 50 to 100 users
- Desktop form factor
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall
Model: F18B
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black, Blue
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: ARP, IPSec, L2TP, PPTP, TCP/IP
Switching Protocol: Ethernet
Remote Management: SNMP
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Encryption: 128-bit AES, 256-bit AES, DES, RSA, Triple DES
Capacity: Concurrent sessions: 80000, Maximum number of concurrent users: 50 - 100, New sessions per second: 12000
Network Device: Firewall throughput: 2 Gbps, IPS throughput: 600 Mbps, NGFW throughput: 400 Mbps, Threat prevention throughput: 380 Mbps, VPN throughput (128-bit AES, TINA): 720 Mbps, VPN throughput (256-bit AES, GCM): 310 Mbps, VPN throughput (256-bit AES, MD5): 570 Mbps, VPN throughput (256-bit AES, SHA-256): 270 Mbps, VPN throughput (256-bit AES, TINA): 660 Mbps
VoIP: Yes
VoIP Protocols: H.323, SCCP, SIP
Features: Anti-spam protection, Anti-virus protection, ARP support, Content filtering, DDos attack prevention, DHCP server, DNS caching, DoS attack prevention, Fanless, Firewall protection, Firmware upgradable, FTP proxy, High Availability, HTTP proxy, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPFIX, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, NAT support, PAT support, Quality of Service (QoS), SSH proxy, SSH support, Stateful Packet Inspection (SPI), Traffic shaping, URL filtering, VLAN support, VoIP support, VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 2 x USB 3.0 - Type A, 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 80 GB
Port Expansion Hard Drive Type: SSD
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Desktop
Status Indicators: HDD activity, Port status, Power
Built-in Devices: LED panel
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 6 inch
Weight: 4.41 lbs
Included Items
Included Accessories: USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.1Q, X.509
Warranty
Service Activation: No
