Product Information

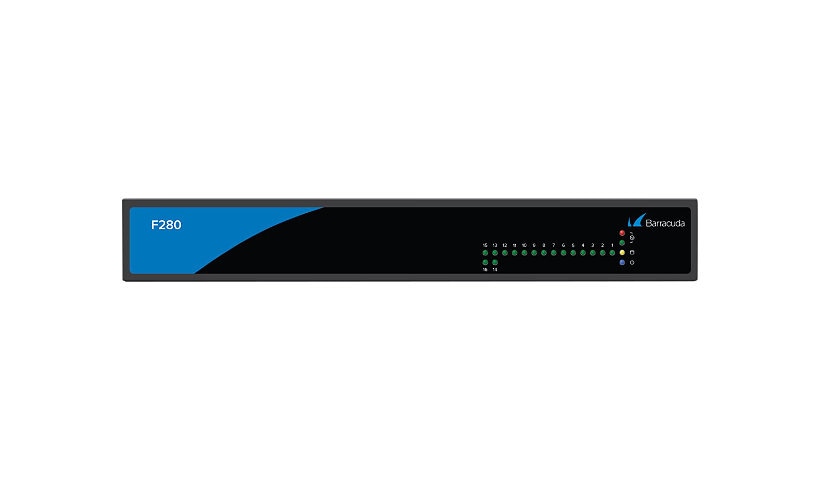

The Barracuda CloudGen Firewall F280C is a desktop next generation firewall with built in SD-WAN and 802.11b/g/n Wi-Fi. It is rated at 6 Gbps firewall (UDP), 2 Gbps IPS, 1.6 Gbps NGFW, 1.5 Gbps threat protection and up to 1.8 Gbps VPN (AES-128, TINA), with up to 300,000 concurrent sessions, 12,000 new sessions per second and 150 to 300 users. It has twelve Gigabit RJ-45 ports, four SFP ports, an RJ-45 console and two USB 3.0 ports, with 4 GB of RAM and a 100 GB drive.
Key Features
- NGFW with SD-WAN
- 802.11b/g/n Wi-Fi
- 6 Gbps firewall (UDP)
- 1.6 Gbps NGFW
- 12 x 1G RJ-45 + 4 x SFP
- Desktop, 4 GB RAM, 100 GB
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall F-Series
Model: F280C
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black, Blue
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Modbus
Network Standard: ARP, DHCP, DNS, FTP, HTTP, HTTPs, ICMP/IP, IPv4, IPv6, NTP, POP3, SMTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, JSON, SMTP, SMTPS, SNMP, SSH
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, MS-CHAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Encryption: 128-bit WEP, 256-bit AES, 64-bit WEP, FIPS 140-2, GCM, MD5, SHA-256, SSL, TLS, WPA, WPA2
Line Coding Format: 16 QAM, 64 QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Capacity: Concurrent sessions: 300000, Maximum number of users: 150 - 300, New sessions per second: 12000
Wireless LAN: 802.11b/g/n
Network Band: 2.4 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Firewall throughput (UDP): 6 Gbps, IPS throughput (UDP): 2 Gbps, NGFW throughput: 1.6 Gbps, Threat protection throughput: 1.5 Gbps, VPN throughput (128-bit AES, TINA): 1.8 Gbps, VPN throughput (256-bit AES, GCM): 750 Mbps, VPN throughput (256-bit AES, MD5): 1.2 Gbps, VPN throughput (256-bit AES, SHA-256): 600 Mbps, VPN throughput (256-bit AES, TINA): 1.1 Gbps
VoIP: Yes
VoIP Protocols: H.323, SCCP, SIP
Features: 1 fan, Anti-bot protection, Anti-spoofing protection, Anti-spyware protection, Anti-virus protection, Application filtering, ARP spoofing, ARP support, Bandwidth control, DDos attack prevention, Deep Packet Inspection (DPI), DHCP relay, DHCP server, DNAT support, DNS caching, DNS server, DoS attack prevention, E-mail protection, Encapsulating Security Payload (ESP), Firewall protection, Firmware upgradable, Flooding detection, Identity Awareness, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Load balancing, Manageable, Modbus compatible, NAT support, Network Access Control (NAC), PAT support, Quality of Service (QoS), Routing, SNAT support, SSL inspection, Stateful Packet Inspection (SPI), SYN Flooding, Traffic replication, Traffic shaping, URL filtering, VLAN support, VoIP support, VPN support, Web Filtering, Web threat protection, Zero-Touch Deployment
Connectivity
Interface Provided: 1 x console - RJ-45, 12 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A, 4 x Ethernet 1000 - SFP
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 100 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Desktop
Status Indicators: HDD activity, Link/activity, Power, Status
Built-in Devices: LED panel
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 11.8 inch
Depth: 8.6 inch
Weight: 5.07 lbs
Included Items
Included Accessories: 2 x Wi-Fi antennas, L-shape rack mount brackets, USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, X.509
Warranty
Service Activation: No
