Product Information

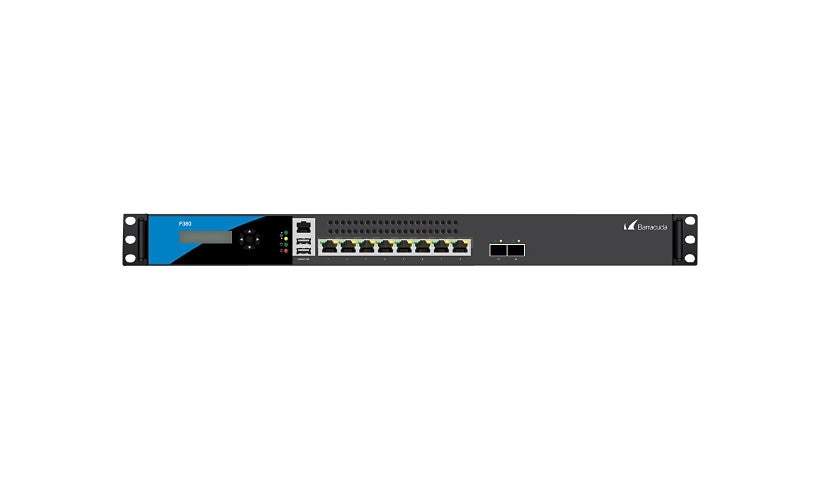

The Barracuda CloudGen Firewall F380B is a 1U next generation firewall with full SD-WAN, rated at 8.5 Gbps firewall, 2.5 Gbps IPS, 2 Gbps NGFW, 1.7 Gbps threat prevention and up to 2.1 Gbps VPN (AES-128, TINA), with up to 400,000 concurrent sessions, 15,000 new sessions per second and 200 to 500 users. It has eight Gigabit RJ-45 ports, two 10G SFP+ ports, an RJ-45 console, two USB 3.0 ports, 4 GB of RAM and a 120 GB drive, with zero touch deployment.
Key Features
- 8.5 Gbps firewall
- 2 Gbps NGFW
- 400,000 sessions
- 8 x 1G RJ-45 + 2 x 10G SFP+
- Zero touch deployment
- 1U rack mount
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall
Model: F380B
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet (optical), Gigabit Ethernet
Network Standard: ARP, IPSec, L2TP, PPTP, TCP/IP
Switching Protocol: Ethernet
Remote Management: SNMP
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Encryption: 128-bit AES, 256-bit AES, DES, RSA, Triple DES
Capacity: Concurrent sessions: 400000, Maximum number of concurrent users: 200 - 500, New sessions per second: 15000
Network Device: Firewall throughput: 8.5 Gbps, IPS throughput: 2.5 Gbps, NGFW throughput: 2 Gbps, Threat prevention throughput: 1.7 Gbps, VPN throughput (128-bit AES, TINA): 2.1 Gbps, VPN throughput (256-bit AES, GCM): 900 Mbps, VPN throughput (256-bit AES, MD5): 1.5 Gbps, VPN throughput (256-bit AES, SHA-256): 700 Mbps, VPN throughput (256-bit AES, TINA): 1.2 Gbps
VoIP: Yes
VoIP Protocols: H.323, SCCP, SIP
Features: Anti-spam protection, Anti-spoofing protection, ARP support, Content filtering, DDos attack prevention, DHCP relay, DHCP server, DNS caching, DoS attack prevention, Firewall protection, FTP proxy, HTTP proxy, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPFIX, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, NAT support, PAT support, Quality of Service (QoS), SSH proxy, SSH support, Stateful Packet Inspection (SPI), Traffic shaping, VoIP support, VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 120 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port status
Built-in Devices: Status LCD
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 17.3 inch
Weight: 18.52 lbs
Included Items
Included Accessories: L-shape rack mount brackets, USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.1Q, X.509
Warranty
Service Activation: No
