Product Information

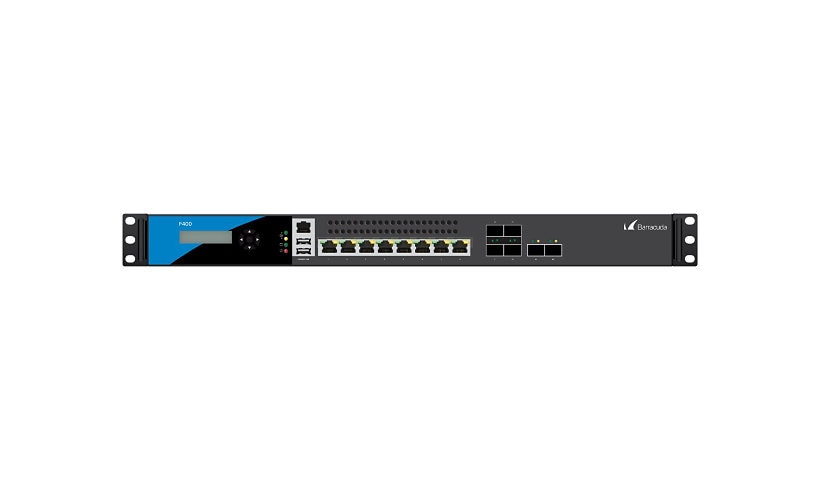

The Barracuda CloudGen Firewall F400C.F20 is a 1U next generation firewall with built in SD-WAN. It is rated at 13 Gbps firewall, 4.2 Gbps IPS, 3.7 Gbps NGFW, 3.1 Gbps threat protection and up to 3.6 Gbps VPN (AES-128, TINA), with up to 500,000 concurrent sessions, 20,000 new sessions per second and 300 to 1,000 users. It has two 10G SFP+ ports, four SFP ports, eight Gigabit RJ-45 ports, an RJ-45 console and two USB ports, with 8 GB of RAM, a 180 GB drive and two power supplies.
Key Features
- NGFW with SD-WAN
- 13 Gbps firewall
- 3.7 Gbps NGFW
- 500K concurrent sessions
- 2 x SFP+ + 4 x SFP + 8 x RJ-45
- 1U, dual power supplies
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall
Model: F400C.F20
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet (optical), Gigabit Ethernet
Network Standard: ARP, IPSec, L2TP, PPTP, TCP/IP
Switching Protocol: Ethernet
Remote Management: HTTP, SNMP
Routing Protocol: BGP, OSPF, RIP
Authentication Method: Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Encryption: 128-bit AES, 256-bit AES, DES, Triple DES
Capacity: Concurrent sessions: 500000, Maximum number of users: 300 - 1000, New sessions per second: 20000
Network Device: Firewall throughput: 13 Gbps, IPS throughput: 4.2 Gbps, NGFW throughput: 3.7 Gbps, Threat protection throughput: 3.1 Gbps, VPN throughput (128-bit AES, TINA): 3.6 Gbps, VPN throughput (256-bit AES, GCM): 1.2 Gbps, VPN throughput (256-bit AES, MD5): 2.7 Gbps, VPN throughput (256-bit AES, SHA-256): 1.1 Gbps, VPN throughput (256-bit AES, TINA): 2.1 Gbps
Features: Anti-spam protection, Anti-spoofing protection, Anti-spyware protection, Application filtering, ARP support, Bandwidth control, Black list, Built-in hardware crypto accelerator, DDos attack prevention, DHCP client, DHCP relay, DHCP server, DNS caching, DoS attack prevention, E-mail notification, E-mail protection, Event notification, Fanless, FTP proxy, HTTP proxy, Identity Awareness, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPFIX, IPv4 support, IPv6 support, Jumbo Frames support (up to 9000 bytes), NAT support, PAT support, Quality of Service (QoS), Reset button, SNMP trap, SSH proxy, SSH support, Transparent Proxy, VoIP support, VPN support, Web Filtering, Web threat protection, White list
Connectivity
Interface Provided: 1 x console - RJ-45, 2 x 10GBase-X - SFP+, 2 x USB 2.0 - Type A, 4 x 1000Base-X - SFP (mini-GBIC), 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 208 watt
Power Supplies Installed: 2
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Hard Drive Capacity: 180 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port status
Built-in Devices: Status LCD
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 17.3 inch
Weight: 20.5 lbs
Included Items
Included Accessories: L-shape rack mount brackets, USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.1Q
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
