Product Information

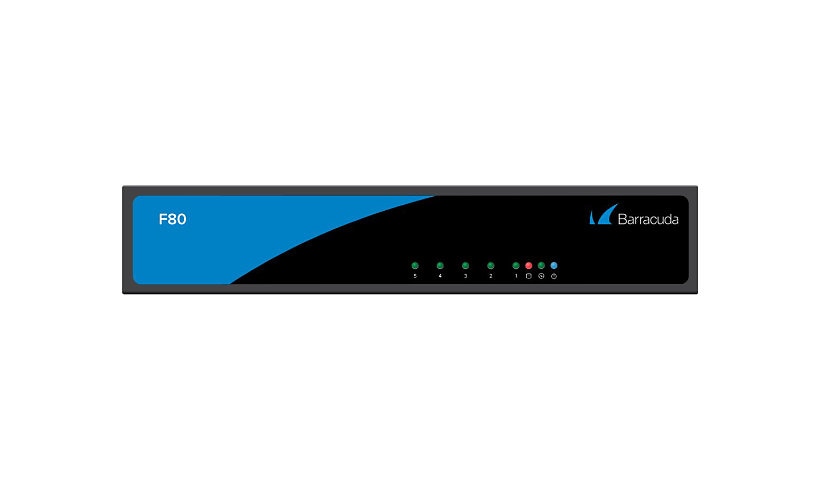

The Barracuda CloudGen Firewall F80B is a desktop next generation firewall with SD-WAN and built in Wi-Fi (802.11b/g/n, 2.4 GHz). It is rated at 2 Gbps firewall, 600 Mbps IPS, 400 Mbps NGFW, 380 Mbps threat protection and up to 720 Mbps VPN (AES-128, TINA), with up to 80,000 sessions, 12,000 new sessions per second and 50 to 100 users. It has five Gigabit RJ-45 ports, a console, two USB 3.0 ports, 4 GB of RAM and 80 GB of storage.
Key Features
- 2 Gbps firewall
- 400 Mbps NGFW
- 80,000 sessions
- 5 x 1G RJ-45
- Built in Wi-Fi
- Desktop form factor
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen Firewall
Model: F80B
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: ARP, IPSec, L2TP, PPTP, SMTP, TCP/IP
Encryption: 128-bit AES, 128-bit WEP, 256-bit AES, 64-bit WEP, WPA, WPA2
Capacity: Concurrent sessions: 80000, Maximum number of concurrent users: 50 - 100, New sessions per second: 12000
Wireless LAN: 802.11b/g/n
Network Band: 2.4 GHz
Network Device: Firewall throughput: 2 Gbps, IPS throughput: 600 Mbps, NGFW throughput: 400 Mbps, Threat protection throughput: 380 Mbps, VPN throughput (128-bit AES, TINA): 720 Mbps, VPN throughput (256-bit AES, GCM): 310 Mbps, VPN throughput (256-bit AES, MD5): 570 Mbps, VPN throughput (256-bit AES, SHA-256): 270 Mbps, VPN throughput (256-bit AES, TINA): 660 Mbps
Antennas: 2
Antenna Form Factor: External detachable
Features: Anti-virus protection, Built-in hardware crypto accelerator, DDos attack prevention, DHCP relay, DHCP server, DNS caching, DoS attack prevention, Fanless, Firewall protection, FTP proxy, HTTP proxy, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, NAT support, PAT support, Quality of Service (QoS), SSH proxy, Traffic shaping, URL filtering, VLAN support, VPN support
Connectivity
Ports: 5
Interface Provided: 1 x console - RJ-45, 2 x USB 3.0 - Type A, 5 x 1000Base-T - RJ-45
Power
Frequency: 50/60 hertz
Power Provided: 45 watt
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 80 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Desktop
Status Indicators: HDD activity, Port status, Power
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 6 inch
Weight: 4.41 lbs
Included Items
Included Accessories: USB flash drive
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
