Product Information

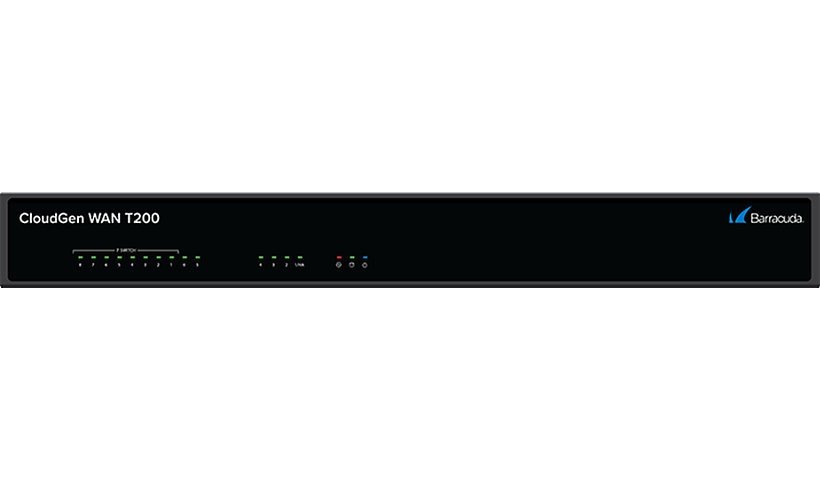

The Barracuda CloudGen WAN T200C is a branch SD-WAN and security appliance that connects sites to the CloudGen WAN SASE service running in Azure Virtual WAN hubs. It is rated at 1 Gbps, with up to 300,000 concurrent sessions, 12,000 new sessions per second and 150 to 300 users. It has twelve Gigabit RJ-45 ports, four SFP ports, an RJ-45 console, two USB 3.0 ports, Wi-Fi (802.11b/g/n), 4 GB of RAM and 80 GB of storage, with zero touch deployment and adaptive bandwidth protection.
Key Features
- SD-WAN to Azure vWAN
- 1 Gbps performance
- 300,000 sessions
- 12 x 1G RJ-45 + 4 x SFP
- Zero touch deployment
- 4 GB RAM, 80 GB storage
Product Information
Brand: Barracuda
Manufacturer: Barracuda
Product Line: Barracuda CloudGen WAN
Model: T200C
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Capacity: Concurrent sessions: 300000, Maximum number of concurrent users: 150 - 300, New sessions per second: 12000
Wireless LAN: 802.11b/g/n
Network Band: 2.4 GHz
Network Device: Performance: 1 Gbps
Features: Anti-malware protection, Dynamic QoS, Intrusion Detection and Prevention (IDP), SD-WAN support, SSL inspection, Stateful Packet Inspection (SPI), URL filtering
Connectivity
Interface Provided: 1 x console - RJ-45, 12 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A, 4 x 1000Base-X - SFP
Power
Device Type: External power adapter
Required Voltage: AC 90-264 volt
Frequency: 50/60 hertz
Power Provided: 90 watt
Memory and Processor
RAM Installed: 4 GB
Hard Drive Capacity: 80 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
MTBF: 5 Year
Physical Characteristics
Form Factor: Rack-mountable
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 11.8 inch
Depth: 8.6 inch
Weight: 5.07 lbs
Included Items
Included Accessories: 2 L-shape rack mount brackets, 2 x Wi-Fi antennas, USB flash drive
Cables: 1 x network cable, 1 x serial cable
Warranty
Service Activation: No
