Product Information

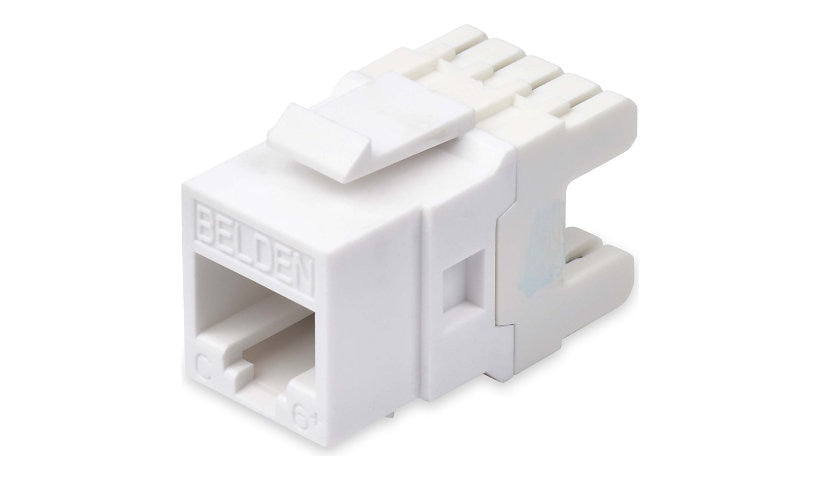

The Belden KeyConnect keystone jack is a reliable, robust way to connect your network, with a single RJ45 port and gold-plated contacts. This pack includes 24 jacks.
Key Features
- Cat6+ keystone jack
- Gold-plated contacts
- Pack of 24
Product Information
Brand: Belden
Manufacturer: Belden
Product Line: Belden KeyConnect
Model: AX104191-B24
Product Type: Keystone jack
Category: Patch panels, outlets and components
Connectivity
Connectors Provided: 1 x RJ-45 female
Dimensions and Weight
Width: 0.6 inch
Height: 0.9 inch
Depth: 1.3 inch
Weight: 0.22 ounce
Color: Yellow
Included Item
Packaged Quantity: 24
Additional Information
Ports: 1 port
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Wall Outlet Connectors: RJ-45
Cable Category: CAT 6+
Certifications and Listing
Compliant Standards: ACA, China RoHS, cULus, Directive 2002/95/EC, FCC part 68 subpart F, IEC 60603-7, ISO/IEC 11801:2002 (Ed. 2), TIA 568.2-D, UL 940V-0
