Product Information
Fast, simple data links

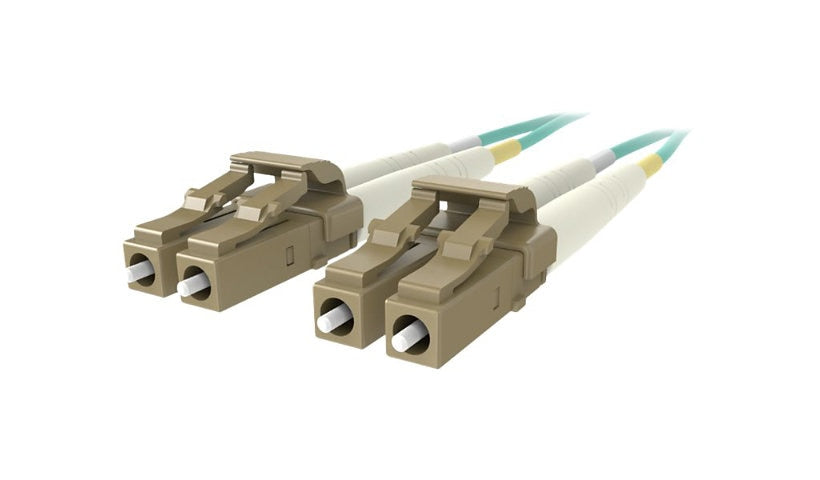

Build high-speed connections across your local network with this 3 meter Belkin multimode 50/125 LC to LC patch cable. It works with your existing network equipment and gives you three times the bandwidth of older 62.5/125 multimode fiber. It connects 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers and reaches up to 300 meters at 10Gb (850 nm).
LC connectors for quick setup
Two LC multimode male connectors on each end mean no splicing and a fast install. The cable works with transceivers such as SFP.
Multimode fiber for backbone links
This laser-optimized fiber has a larger core and gathers more light than single mode fiber, which makes it a good part of a backbone network. With a 50 micron core and 125 micron cladding, it is best for shorter runs, such as inside an office building.
Built to industry standards
The cable is classified as OM3 multimode optical fiber under the ISO/IEC 11801 standard and is backed by Belkin's lifetime warranty.
Specifications:
Brand: Belkin
Manufacturer part number: F2F402LL-03M-G
Cable type: Patch cable
Fiber mode: Multimode
Strand configuration: Duplex
Core/cladding: 50/125 µm
Fiber count: 2
Connector, end A: 2 x LC multimode (male)
Connector, end B: 2 x LC multimode (male)
Jacket: PVC
Length: 3 m (10 ft)
Color: Aqua
Operating temperature: -4°F to 158°F
Quantity in package: 1
Standards and compliance: OM3
Warranty: Limited Lifetime
Effective modal bandwidth: 2000 MHz·km (OM3)
Transceiver support: 10GBase-SR, 10GBase-LRM, SFP+, QSFP+
10Gb reach: up to 300 m at 850 nm
