Product Information

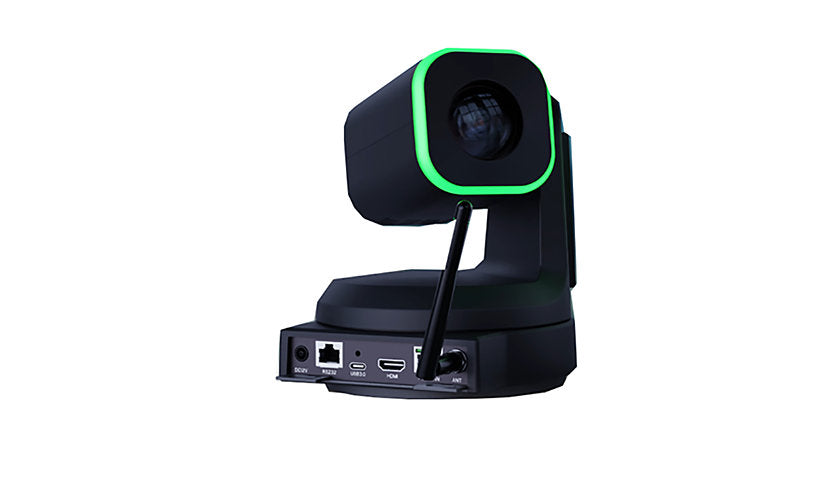

The BirdDog X1 (BDX1B) is a black 1080p PTZ camera for live production with NDI HX3 and Wi-Fi, AI tracking and halo tally. It has a 1/2.8 inch CMOS sensor, 20x optical zoom over 5.5 to 110 mm at F/1.6 to 3.5, up to 60 fps, pan -175 to +175 and tilt -90 to +90 degrees, HDMI, USB-C, RJ-45 LAN and RS-232. Power adapter, remote and USB cable included.
Key Features
- 1080p, up to 60 fps
- 20x optical zoom
- NDI HX3 and Wi-Fi
- AI tracking, halo tally
- HDMI, USB-C, RS-232
- Remote included
Product Information
Brand: BirdDog
Manufacturer: Birddog
Product Line: BirdDog
Model: X1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired
Features: >50 dB SNR, 255 preset positions, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), AI Tracking, Auto exposure control, Backlight Compensation (BLC), Color matrix, IRIS Priority mode, NDI control, NDI|HX3 technology, Shutter Priority mode, Smooth PTZ, Tally light, Ultra low latency mode
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX, IEEE 802.11ac
Protocols: NDI HX2, NDI HX3, RTMP, RTSP, SRT, VISCA
Ports: HDMI - HDMI Type A, LAN/power - RJ-45, Serial RS-232 - RJ-45, USB-C - 24-pin USB-C
Host Interface: USB-C
Technical Information
Angular Field of View (H, Max, Degree): 55.8
Angular Field of View (V, Max, Degree): 32.2
Focus Modes: Automatic, Manual
Video Signals: HDMI, USB
Angular Field of View (D, Min, Degree): 3.64
Max Focal Length: 110 millimetre
Optical Zoom: 20
Control Interface: RS-232, RS-485, USB
Camera Type: Network surveillance camera
Tilt: -90 to +90
Panning Range (degree): -175 to +175
Angular Field of View (H, Min, Degree): 3.2
Angular Field of View (V, Min, Degree): 1.8
Total Pixels: 2,070,000 pixels
Video Modes: 1080p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.5
Min Focal Length: 5.5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/100000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Touchscreen: No
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 80%
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 7.6 inch
Width: 6.8 inch
Depth: 6.8 inch
Weight: 2.98 lbs
Included Items
Included Accessories: Power adapter, Remote control
Cables: 1 x USB cable - external
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
