Product Information

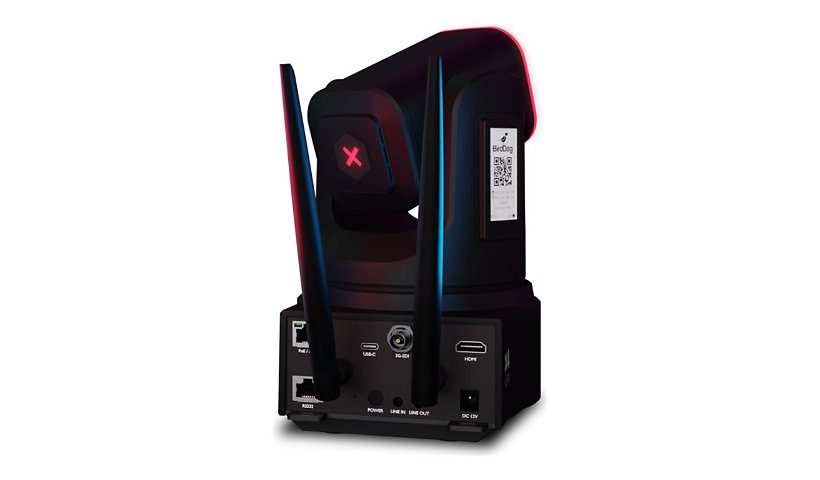

The BirdDog X4 Ultra is a black 4K60 PTZ camera for live production with a Sony 1/1.8 inch 8.42 MP sensor and 20x optical zoom. It can run cable free on its own battery (up to 6 hours) and Wi-Fi 6, and offers IP, USB-C (UVC), HDMI and 3G-SDI outputs, streaming over SRT, RTSP, RTMP or NDI (HX2 and HX3), AI tracking and 255 presets. Two antennas, a power adapter and a remote are included. It is a production camera, not a security camera.
Key Features
- 4K at 60 fps
- 20x optical zoom
- Wi-Fi 6, battery
- NDI, SRT, RTMP
- AI tracking
- Remote included
Product Information
Brand: BirdDog
Manufacturer: Birddog
Product Line: BirdDog
Model: X4 Ultra
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Features: >45 dB SNR, 255 preset positions, 3D digital noise reduction (DNR), AI Tracking, Auto exposure control, Backlight Compensation (BLC), E-ink display, IRIS Priority mode, Manual exposure, NDI control, NDI|HX3 technology, Shutter Priority mode, Smooth PTZ, Tally light, USB Video class
Connectivity
Network Interface: Ethernet 100Base-TX/1000Base-T
Protocols: IP VISCA, NDI HX2, NDI HX3, ONVIF, RTMP, RTSP, SRT, VISCA
Ports: 3G-SDI, Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, HDMI - HDMI Type A, LAN/power - RJ-45, Serial RS-232 - RJ-45, USB-C - 24-pin USB-C
Host Interface: USB-C
Technical Information
Angular Field of View (D, Max, Degree): 66.6
Angular Field of View (H, Max, Degree): 60
Angular Field of View (V, Max, Degree): 35
Focus Modes: Automatic, Manual
Video Signals: 3G-SDI, HDMI, USB
Angular Field of View (D, Min, Degree): 4
Max Focal Length: 125 millimetre
Optical Zoom: 20
Control Interface: RS-232, USB
Camera Type: Network surveillance camera
Max Panning Speed (degree/sec): 80
Max Tilting Speed (degree/sec): 60
Tilt: -30 to +90
Panning Range (degree): -170 to +170
Angular Field of View (H, Min, Degree): 3.5
Angular Field of View (V, Min, Degree): 2
Total Pixels: 8,420,000 pixels
Video Modes: 1080p, 2160p, 4K, 720p
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.58-3.95
Min Focal Length: 6.25 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/1 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 80%
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 7.4 inch
Width: 5.5 inch
Depth: 8 inch
Weight: 4.83 lbs
Included Items
Included Accessories: 2 antennas, Power adapter, Rear silicon numbers, Remote control
