Product Information

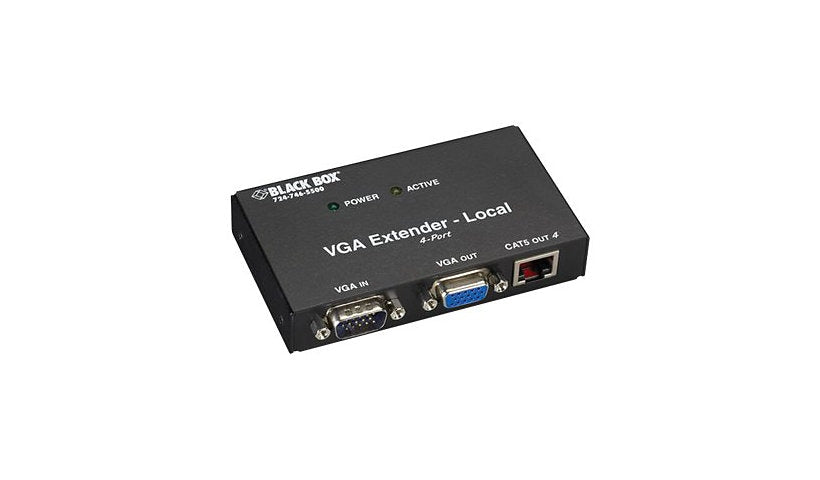

Use this Black Box transmitter with VGA receivers to place up to four VGA monitors as far as 500 ft (152.4 m) from your PC, at four separate locations, over CAT5, CAT5e or CAT6 cable. A 2 kV avalanche diode provides extra electrostatic discharge (ESD) protection for more reliable operation. A local VGA output is also provided. Backed by a 1 year limited warranty.
Key Features
- 4-port VGA over CATx transmitter
- Up to 500 ft (152.4 m)
- Up to 1024 x 768
- 2 kV ESD protection
- For use with VGA receivers
- 1 year limited warranty
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Model: VGA Transmitter
Manufacturer Part Number: AC555A-4-R2
Product Type: Video extender
Form Factor: External
Dimensions and Weight
Width: 3.3 inch
Height: 0.6 inch
Depth: 2.3 inch
Weight: 7.05 ounce
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Extender Type: Transmitter
Max Transfer Distance: 500 ft
Ports: 4
Status Indicators: Active, Power
Interface Provided: 1 x VGA (input) - HD-15 male, 1 x VGA (output) - HD-15 female, 4 x network - RJ-45
KVP Max Resolution: 1024 x 768
Frequency: 60 hertz
Device Type: External power adapter
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
