Product Information
This professional 4K HDMI 2.0 matrix switcher has four HDMI inputs, four HDMI outputs and SPDIF audio outputs, built to switch HDMI 2.0 and HDCP 2.2 signals with powerful EDID management for reliable distribution. It supports 4K at 60Hz 4:4:4 and 1080p 3D, is backward compatible with earlier HDMI versions, and outputs both L/R analog and SPDIF audio. Control it from the front panel, IR remote, RS-232, TCP/IP or a web GUI, and an LCD shows real-time I/O status. It mounts in a rack and is ideal as the core of an AV system where sources with different resolutions must be routed to multiple displays.
Key Features
- 4x4 HDMI 2.0 matrix switcher
- 4K at 60Hz 4:4:4, HDCP 2.2/2.3
- Analog and SPDIF audio de-embedding
- Front panel, IR, RS-232, TCP/IP and web control
- Rack-mountable, LCD status
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box

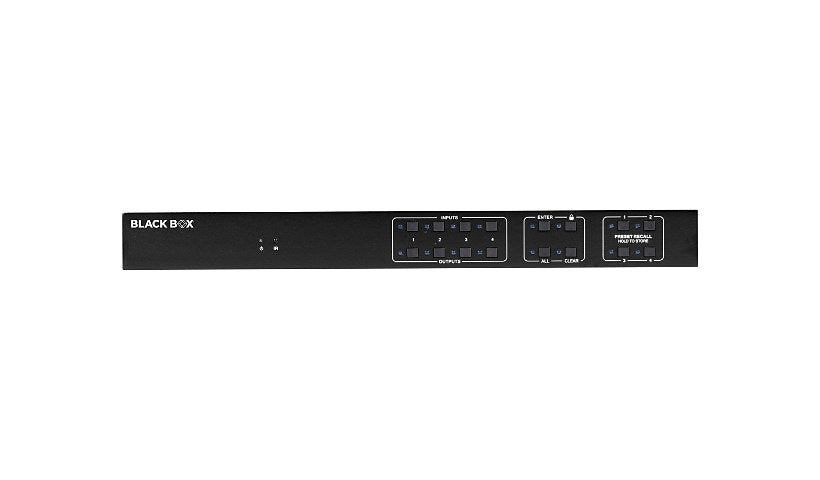

Model: AVS-HDMI2-4X4-R2
Product Type: 4x4 matrix switcher / audio disembedder
Technical Information
Features: 4K60 4:4:4 signal support, EDID support, HDCP 2.2 compliant, HDCP 2.3 compliant
Dimensions and Weight
Width: 17.2 inch
Height: 1.7 inch
Depth: 9.3 inch
Weight: 5.73 lbs
Included Item
Packaged Quantity: 1
Additional Information
Max Operating Temperature: 131 degree Fahrenheit
Max Power Consumption: 18.3 watt
Min Operating Temperature: 23 degree Fahrenheit
Operating Humidity: 10 - 90%
Kit Content: (1) x IR receiver, (1) x IR remote control, (1) x power adapter, (1) x rack mount screw kit, (1) x serial cable, (2) x rack mount brackets, (4) x plastic cushion
Terminals: (1) x network - RJ-45, (1) x serial - 3-pin terminal block - RS-232, (4) x audio line-out - RCA x 2, (4) x HDMI input - 19 pin HDMI Type A, (4) x HDMI output - 19 pin HDMI Type A, (4) x SPDIF output - RCA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
