Product Information

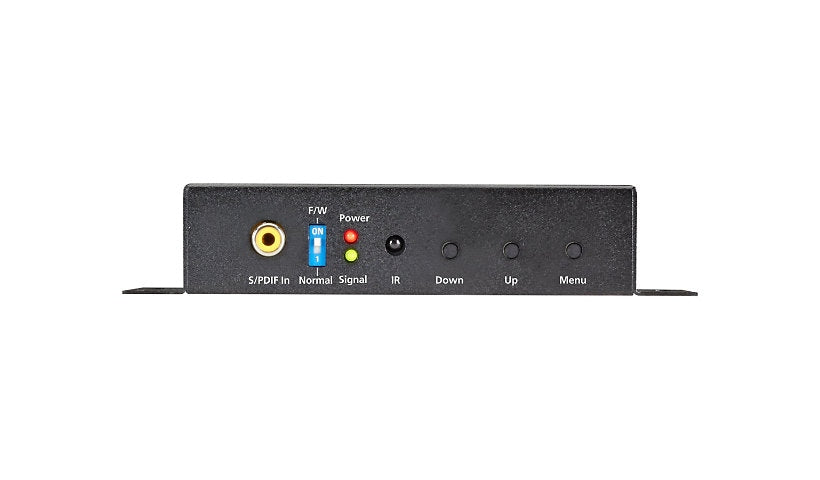

This Black Box converter scaler upscales analog VGA or component video for clean 1080p or WUXGA output on an HD display, with audio support so digital or analog audio is carried over HDMI. An on-screen menu lets you choose the output resolution and adjust contrast, brightness, hue, saturation, sharpness, RGB level and aspect ratio. It is ideal for bringing an older PC into digital signage or scaling video for healthcare, labs and studios. The compact unit is powered by a wall adapter or USB and controlled through USB, the OSD buttons or the included remote. It is RoHS compliant. Backed by a 3 year limited warranty.
Key Features
- VGA / component to HDMI scaler
- Up to 1080p / 1920 x 1200
- Audio embedding (analog or SPDIF)
- OSD picture controls, remote included
- USB or adapter powered
- 3 year limited warranty
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Model: AVSC-VGA-HDMI-R2
Product Type: Video converter
Dimensions and Weight
Width: 8.9 inch
Height: 1 inch
Depth: 3.3 inch
Weight: 8.82 ounce
Included Item
Packaged Quantity: 1
Additional Information
Interface Provided: 1 x HDMI output - 19 pin HDMI Type A, 1 x SPDIF line-in, 1 x VGA, 2 x audio line-in - mini-phone stereo 3.5 mm
Maximum External Resolution: 1920 x 1200
Output Ports (compact list): HDMI, VGA
Input Ports: VGA
Frequency: 50/60 hertz
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Video Adapter Accessories Included: Remote control
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: RoHS 2, UL, WEEE
Warranty
Limited Warranty: 3 Year
