Product Information

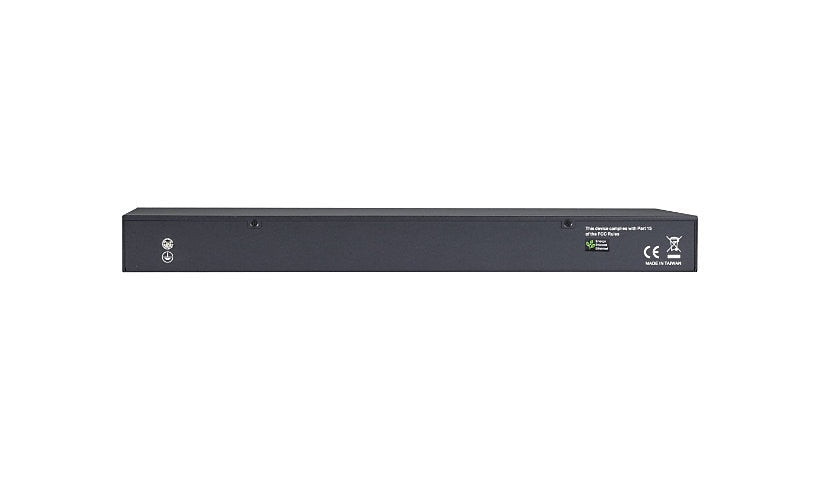

Black Box's LGB5124A-R2 is a fully managed fiber switch with 20 SFP fiber ports and four combo RJ-45/SFP ports, all running at 100 or 1000 Mbps. It offers 48 Gbps of bandwidth, programmable QoS, OAM and CFM, and port bundling for higher bandwidth.
Key Features
- 20 x 100/1000 SFP ports
- 4 x combo 100/1000 RJ-45/SFP ports
- 48 Gbps, 35.71 Mpps
- QoS, OAM, CFM, link aggregation
- DB-9 console
- Desktop or rack mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Model: Eco
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RMON, SNMP, SSH, Telnet, TFTP
Performance: Aggregate bandwidth: 48 Gbps, Throughput: 35.71 Mpps
MAC Address Table Size: 16K entries
Features: 3 fans, Back Pressure Support, Flow control, Store and forward
Connectivity
Ports: 24
Port Quantity: 20
Port Type: Gigabit SFP
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 1 x console DB-9 management, 24 x SFP, 4 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 84 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, Link/activity, Port transmission speed, Power, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 6.83 lbs
Included Items
Included Accessories: 4 rubber feet
Cables: 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: EN 55022:2006+A1:2007, EN 61000-3, EN55022 Class A, EN55024, FCC Class A certified, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4:2004, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
