Product Information

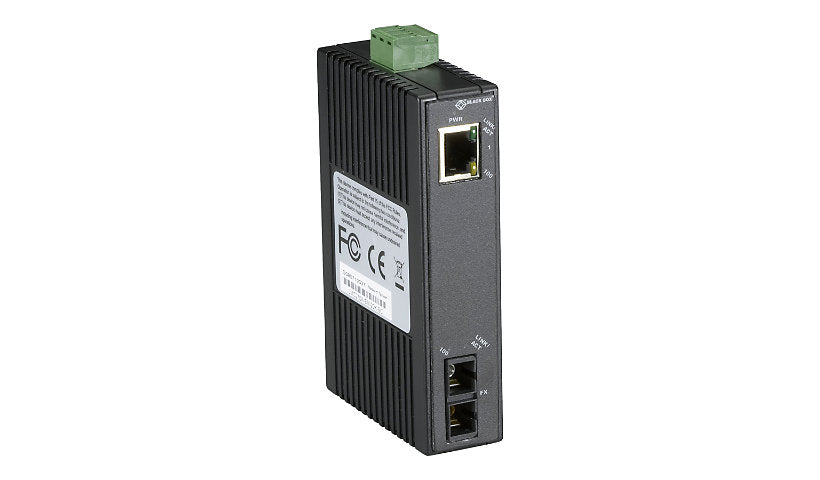

Extend your network with copper to fiber conversion. This converter supports 2048 MAC addresses and has 384 KB of buffer memory. The auto MDI/MDI-X copper port auto-negotiates 10/100 Mbps and detects full or half duplex. It installs easily on a DIN rail with the included kit and reaches up to 20 km over SC singlemode fiber.
Specifications:
Brand: Black Box
Manufacturer part number: LMC270A-SM-20K-SC
Product line: Black Box Hardened Mini Industrial
Cable type: Fiber media converter
Data rate: 100 MBps
Features: Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex capability, Store and forward
Height: 4.3 inch
Width: 1 inch
Weight: 7.05 ounce
Operating temperature: -13°F to 140°F
Quantity in package: 1
Standards and compliance: IEEE 802.3x, IEC 60529 IP30
Warranty: 1 Year
Reach: up to 20 km
MAC table: 2048 addresses
Buffer: 384 KB
