Product Information

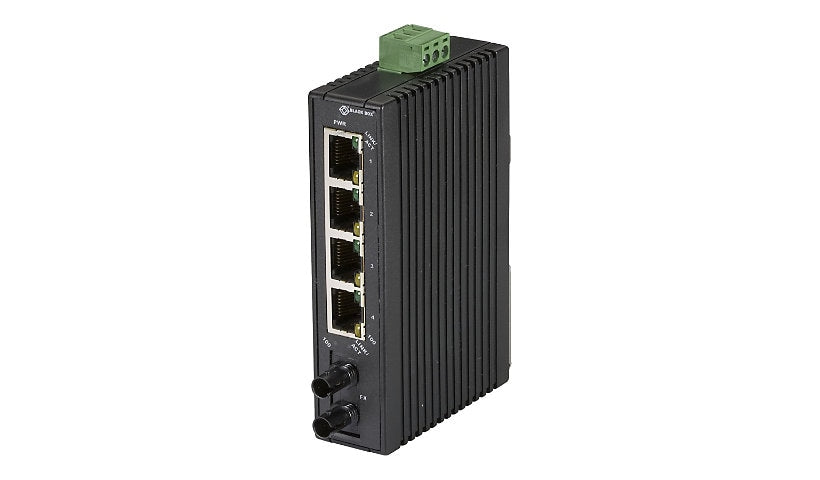

Black Box's LBH120A-H-ST is a compact hardened switch for harsh sites, with four 10/100 copper ports plus a fiber uplink. It mounts on a DIN rail, runs from -13 to 140 °F and meets IEC 61000-6-2 industrial EMC standards.
Key Features
- 5 ports: 4 x 10/100 RJ-45 + fiber uplink
- Industrial hardened design
- Operating range -13 to 140 °F
- DIN rail mount
- Auto-negotiation and flow control
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Hardened Mini Industrial
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Switching Type: Fast Ethernet
Max Transfer Distance (Optical): 12.4 miles
MAC Address Table Size: 2K entries
Features: Auto-negotiation, Auto-sensing per device, Flow control
Connectivity
Ports: 5
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Link/activity, Port status, Power
Dimensions and Weight
Height: 4.3 inch
Width: 1 inch
Depth: 2.8 inch
Weight: 7.05 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3
Compliant Standards: IEC 60529 IP30
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
