Product Information

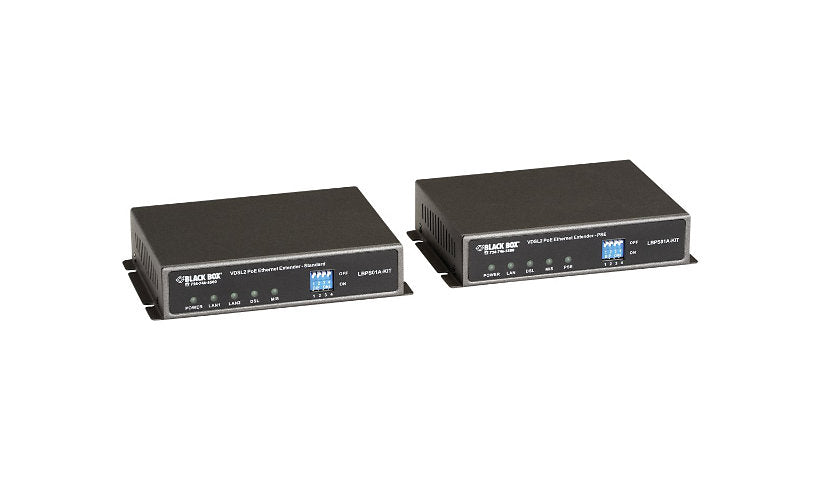

The Black Box LBPS01A-KIT is a pair of VDSL Ethernet extenders that carry 10/100 Ethernet over existing twisted-pair phone wire for up to 4,000 ft. One unit is a PoE source that can power a PoE device at the far end, such as an IP camera or access point, so no extra outlet is needed there.
Key Features
- Kit of 2 VDSL extenders
- 10/100 Mbps Ethernet up to 4,000 ft
- PoE output to power a remote device
- RJ-11 line port
- Auto MDI/MDIX, full duplex
- Link, port and power LEDs
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Ethernet Extender Kit
Model: VDSL PoE
Product Type: Short-haul modem
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 100 MBps
Max Transfer Distance: 4000 ft
Features: Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Full duplex capability
Connectivity
Interface Provided: 1 x phone line - RJ-11
Power Over Ethernet (PoE): PoE
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Port status, Power
Dimensions and Weight
Height: 0.8 inch
Width: 4.7 inch
Depth: 3.5 inch
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
