Product Information

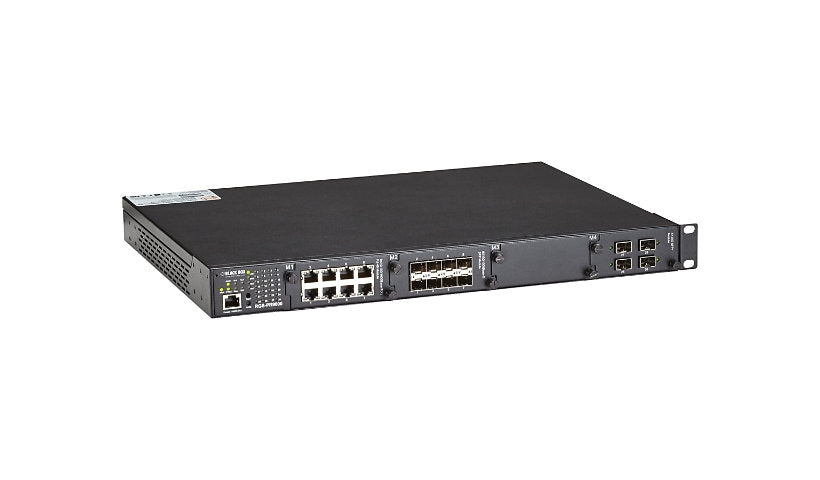

Black Box's LE2700AE is a hardened managed modular switch chassis with four slots (slot four takes SFP/SFP+ modules only), rated -40 to 185 °F. It supports MSTP, QoS and DHCP, has redundant power and works on a desk or in a rack. It ships with no modules installed and is TAA compliant.
Key Features
- 4-slot modular chassis
- Managed: MSTP, QoS, DHCP
- Operating range -40 to 185 °F
- Redundant power
- No modules installed
- TAA compliant
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LE2700 Series Hardened Managed Modular Switch
Model: Chassis
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: Europe
Network and Communication
Manageable: Yes
Remote Management: CLI, HTTPS, SNMP 3, SSH
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: TACACS+
Encryption: MODBUS
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9.6KB
Features: Class of Service (CoS), DHCP client, DHCP relay, DHCP server, DNS proxy, LLDP support, MAC address filtering, MAC address lockout, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Reset button, Spanning Tree Protocol (STP) support, Store and forward, Tagged VLAN, VLAN support
Connectivity
Interface Provided: 1 x serial (RS-232) RJ-45
Expansion Slots: 4 (total) / 4 (free) x expansion slot
Power
Device Type: External power adapter
Power Consumption Operational: 43.5 watt
Power Supplies Supported: 2
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port status, Power
Supported Devices: 4
Installed Devices/Modules: 0
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.8 inch
Weight: 14.55 lbs
Certifications and Listing
Compliant Standards: CISPR, EN 50121-3-2, EN 50121-4, EN 55011, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN50155, EN55022, FCC Part 15
Compliant Standards: IEEE 1588v2, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
