Product Information

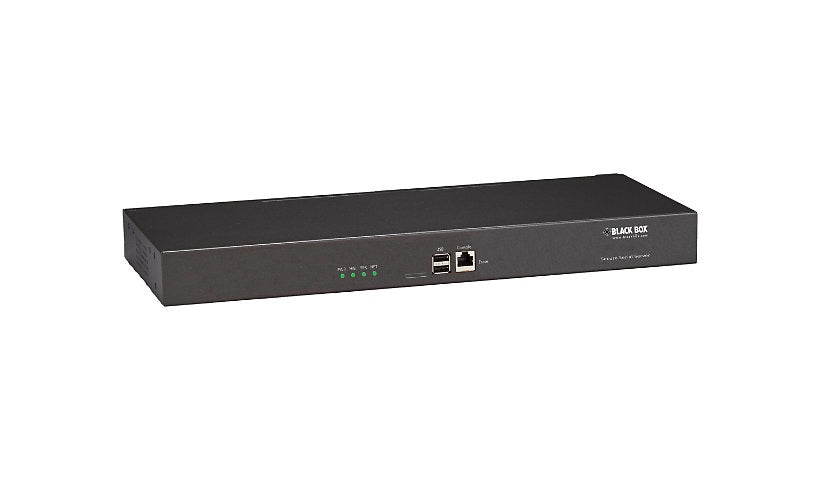

The Black Box LES1516A is a 16 port secure serial console server with Cisco pinout for affordable out-of-band management of routers, switches, PDUs and firewalls at branch sites and colocation data centers. It has sixteen RS-232 RJ-45 ports, two Ethernet ports with auto failover and two USB 2.0, with an 800 MHz processor, 256 MB RAM and 4 GB flash. It supports IPsec and PPTP, SSH v2, and Kerberos, LDAP, RADIUS and TACACS+, drawing about 4.2 W from an external adapter in 1U. The spec lists 10/100 Ethernet while the quick specs say dual gigabit, so please confirm.
Key Features
- 16 RS-232 RJ-45 ports
- Cisco pinout
- Dual Ethernet failover
- IPsec, SSH v2
- LDAP, RADIUS, TACACS+
- 1U, about 4.2 W
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Secure Serial Server
Model: Cisco Pinout
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232
Network Standard: IPSec, PPTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP, SSH, SSH-2, Telnet
Authentication Method: CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Features: 4KV ESD Protector, DHCP server
Connectivity
Ports: 16
Interface Provided: 16 x RS-232 - RJ-45, 2 x 100Base-TX - RJ-45, 2 x USB 2.0 - Type A
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 4.2 watt
Memory and Processor
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 17 inch
Depth: 6.9 inch
Weight: 8.82 lbs
Included Items
Cables: 2 x patch cable
Certifications and Listing
Compliant Standards: C-Tick, FIPS 140-2, RoHS, TUV, UL 1950
