Product Information

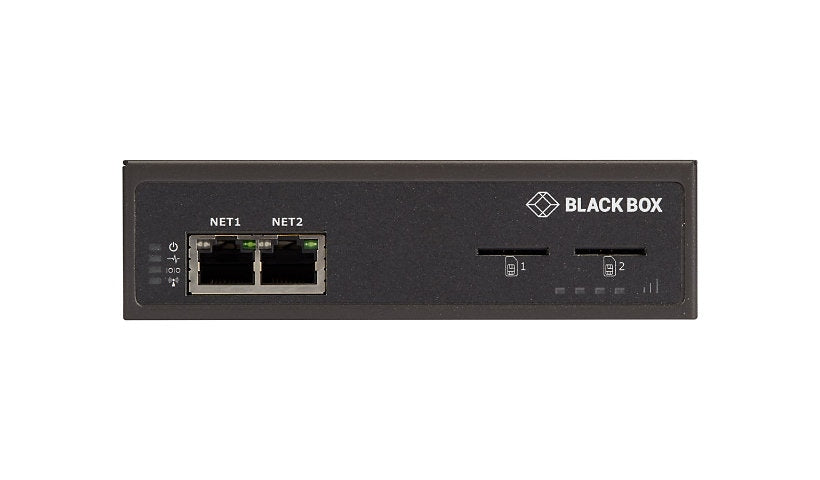

The Black Box LES1604A-R-R2 is a 4 port console server with Cisco pinout and a built-in 4G LTE modem for out-of-band management of network, server and power gear at data centers and remote sites. It has four RS-232 RJ-45 ports, two gigabit RJ-45 and four USB management ports, with an ARMADA 370 at 800 MHz, 256 MB RAM and 32 MB flash. It supports zero touch provisioning, VCMS central management, IPsec, LLDP, FIPS 140-2 and AES, with AD, Kerberos, LDAP, RADIUS and TACACS+. It draws about 11.5 W from an external adapter and comes with a rack kit, rubber feet and a serial adapter.
Key Features
- 4 RS-232 RJ-45 ports
- Built-in 4G LTE modem
- Cisco pinout
- Dual gigabit Ethernet
- ZTP, FIPS 140-2
- Rack kit included
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Model: LES1604A-R-R2
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: Rest of World, United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232
Network Standard: NTP
Remote Management: SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Encryption: AES, FIPS 140-2, SSL
Cellular Data Connectivity Technology: LTE
Mobile Broadband Access: Yes
Features: IP Security (IPSec) support, LLDP support, Virtual Central Management System (VCMS), Zero-touch provisioning (ZTP)
Connectivity
Ports: 4
Interface Provided: 2 x 1000Base-T - RJ-45, 4 x management (USB), 4 x RS-232 - RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 11.5 watt
Memory and Processor
Processor Brand: ARM
Processor Type: ARMADA
Processor Number: 370
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 32 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90%
Physical Characteristics
Form Factor: External
Built-in Devices: Modem
Dimensions and Weight
Height: 5.1 inch
Width: 4.7 inch
Depth: 1.4 inch
Included Items
Included Accessories: 4 rubber feet, Rack mount kit
Cables: 1 x serial adapter
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP)
