Product Information

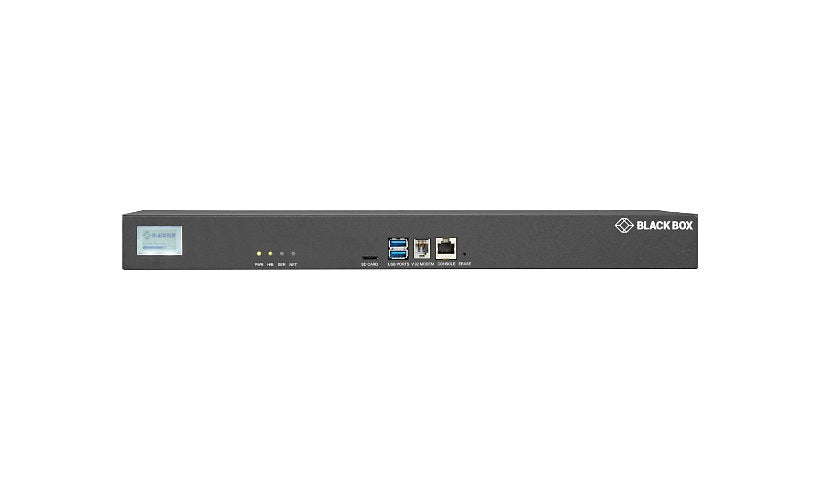

The Black Box LES1716A-R2 is a 16 port console server that gives out-of-band reach to firewalls, PDUs, switches, routers and other consoles in data centers and remote sites. It has sixteen RS-232 ports, dual Ethernet and a V.92 modem for redundant access, and the spec lists cellular broadband support. A 1 GHz ARM with 256 MB RAM, 64 MB flash and 16 GB storage runs zero touch provisioning, LLDP and SSH, with AD, LDAP, Kerberos, RADIUS and TACACS+ login. Dual power supplies draw about 30 W in 1U, and a rack kit, two 6 ft patch cables, a serial adapter and a crossover adapter are included.
Key Features
- 16 RS-232 serial ports
- Dual Ethernet and modem
- Zero touch provisioning
- AD, LDAP, RADIUS, TACACS+
- Dual power supplies
- 1U, rack kit included
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LES1700-R2 Series
Model: LES1716A-R2
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Protocols & Specifications: ITU V.92
Connectivity Technology: Wired
Data Link Protocols: RS-232
Network Standard: NTP
Remote Management: SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, MS-CHAP v.2, RADIUS, Secure Shell (SSH), TACACS+
Encryption: AES, PEAP, WEP, WPA, WPA-PSK, WPA2-PSK
Cellular Data Connectivity Technology: CDMA, GSM, LTE, UMTS
Mobile Broadband Access: Yes
Features: Access Point operational mode, Ad-Hoc Mode, LLDP support, Zero-touch provisioning (ZTP)
Connectivity
Ports: 16
Power
Device Type: Internal power supply
Power Consumption Operational: 30 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1 GHZ
RAM Installed: 256 megabyte
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 64 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 16 GB
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 150,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10 inch
Weight: 9.92 lbs
Included Items
Included Accessories: Rack mount kit
Cables: 1 x crossover adapter, 1 x serial adapter, 2 x patch cable - 6 ft
