Product Information

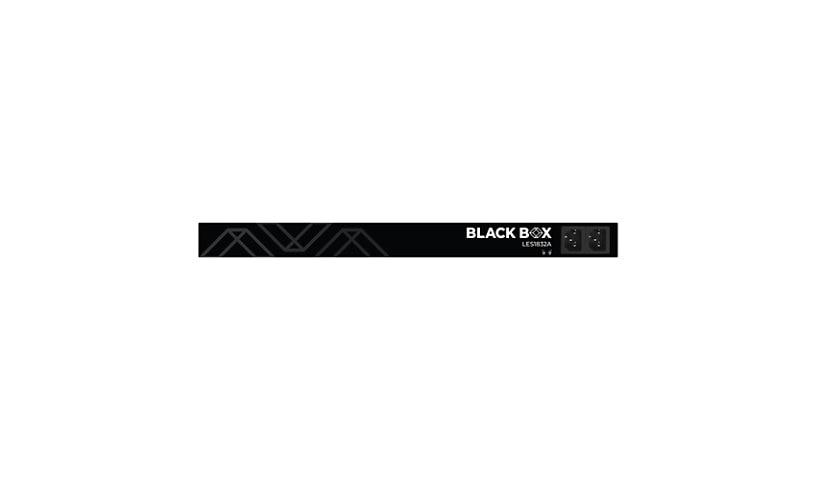

The Black Box LES1832A is a 32 port LES1800 series console server for out-of-band network management. It has thirty-two RS-232 RJ-45 ports, two gigabit RJ-45/SFP combo ports, two USB 3.0 and an RJ-45 console. A 1.6 GHz ARM with 2 GB DDR4 and 32 GB flash supports AES encryption, SSH, SNMP, LLDP and Kerberos, LDAP, RADIUS and TACACS+, with 1500 V isolation and ESD protection. It draws about 30 W in 1U, with a rack kit included, and runs from 5 to 40 C.
Key Features
- 32 RS-232 RJ-45 ports
- 2 x GbE RJ-45/SFP combo
- 2 x USB 3.0
- AES, SSH, TACACS+
- 1500 V isolation
- 1U, rack kit included
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LES1800 Series
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232
Network Standard: NTP
Remote Management: SNMP, SSH
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+
Encryption: AES
Features: 1500V isolation, ESD Protector, LLDP
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 2 x 1000Base-T - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 32 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Power Consumption Operational: 30 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 150,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10 inch
Weight: 9.92 lbs
Included Items
Included Accessories: Rack mount kit
