Product Information

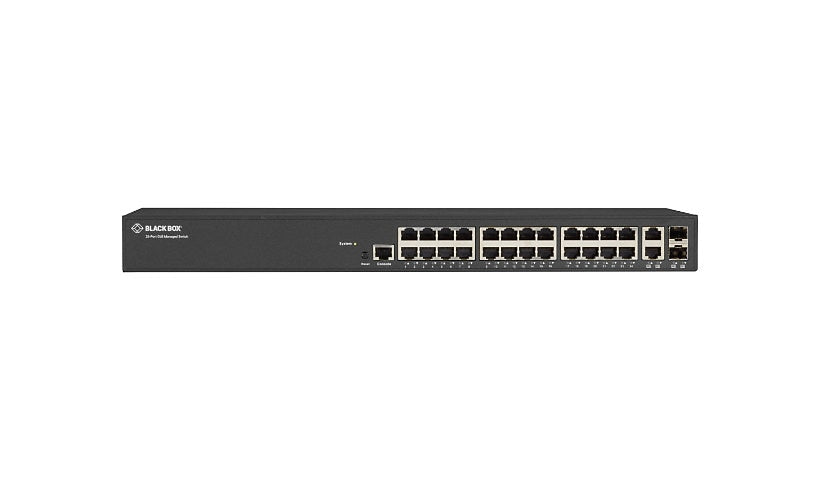

Black Box's LGB1126A-R2 is an L2+ managed rack switch with 24 Gigabit RJ-45 ports and two combo Gigabit RJ-45/SFP uplinks for copper or 100/1000 fiber. It offers 52 Gbps of switching capacity with IGMP snooping and querier, DHCP snooping and dual image support.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 2 x combo Gigabit RJ-45/SFP uplinks
- 52 Gbps switching, 38.68 Mpps
- L2+, IGMP, DHCP snooping
- Dual firmware images
- Rack mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 2+
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: IGMP, MLD, MLDv2
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: SSL
Performance: Forwarding performance: 38.68 Mpps, Switching capacity: 52 Gbps
Capacity: ACL entries: 256, Simultaneous VLANs: 4000
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-negotiation, Cable Diagnostics Function, DHCP client, DHCP relay, DHCP server, DHCP snooping, DiffServ support, Dual image support, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPv6 support, LLDP support, Management Information Base (MIB), Network Timing Protocol (NTP), Port Security, Private VLAN Edge (PVE), Quality of Service (QoS), sFlow, SNTP support, Storm Control, Syslog support, User Datagram Protocol (UDP), VLAN Double Tagging (Q-in-Q), VLAN support, Voice VLAN, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 26
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 1 x console RJ-45, 2 x 10/100/1000 Base-T RJ-45 uplink, 2 x 10/100/1000 Base-T SFP uplink, 24 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 5.51 lbs
Included Items
Cables: 1 x console cable, 1 x power cable
Certifications and Listing
Compliant Standards: FCC Part 15 A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, UPnP
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
