Product Information

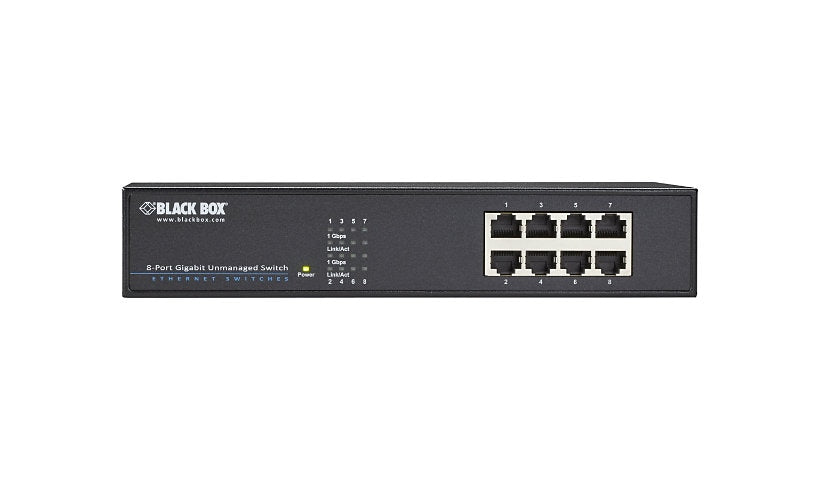

Black Box's LGB408A-R2 is an eight port Gigabit switch for small workgroups and branch offices, with store and forward switching and broadcast storm protection. It is rack mountable and runs from an external power adapter at about 15 W.
Key Features
- 8 x Gigabit RJ-45 ports
- Store and forward switching
- Broadcast storm protection
- About 15 W, external adapter
- Rack mountable
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Model: Gigabit Unmanaged Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Performance: Forwarding performance: 1488000 pps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Back Pressure Support, Broadcast storm protection, Full duplex mode, Half duplex mode, Store and forward
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 15 watt
Memory and Processor
RAM Installed: 3.5 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 194 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: 1000M device connected, Link/activity, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 4.8 inch
Depth: 9 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Compliant Standards: FCC Class A certified, NOM
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
