Product Information

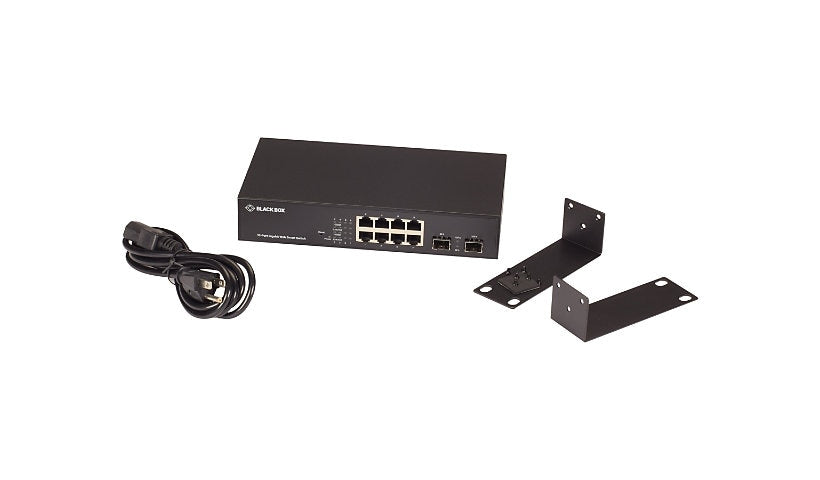

Black Box's LGB710A from the LGB700 series is a fanless web smart desktop switch with eight Gigabit RJ-45 ports and two 100/1000 SFP fiber uplinks. It offers 20 Gbps of switching capacity with QoS, IGMP snooping and loopback detection, and it is TAA compliant.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 2 x 100/1000 SFP ports
- 20 Gbps switching capacity
- Web smart, QoS, IGMP snooping
- Fanless desktop
- TAA compliant
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LGB700 Series
Model: Web Smart Gigabit Ethernet Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, SNMP 1, SNMP 2c
Routing Protocol: IGMP, IGMPv2
Performance: Forwarding rate: 1.488 Mpps, Switching capacity: 20 Gbps
Capacity: Packet buffer size: 512 KB
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9.6KB
Features: Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Energy-Efficient Ethernet (EEE), Fanless, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, Loopback detection, Port mirroring, Port-based VLAN, Quality of Service (QoS), Tagged VLAN, VoIP support
Smart: Yes
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000 SFP
Interface Provided: 2 x Gigabit LAN SFP, 8 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 15 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: 1000M device connected, Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 4.9 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: CISPR 22 Class A, Directive 2006/95/EC, Directive 2011/65/EU, EN 55022:2010 Class A, FCC Part 15 B, FCC Part 15 C, IEC 61000-3-2:2005, IEC 61000-3-3:2008, RoHS
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
