Product Information

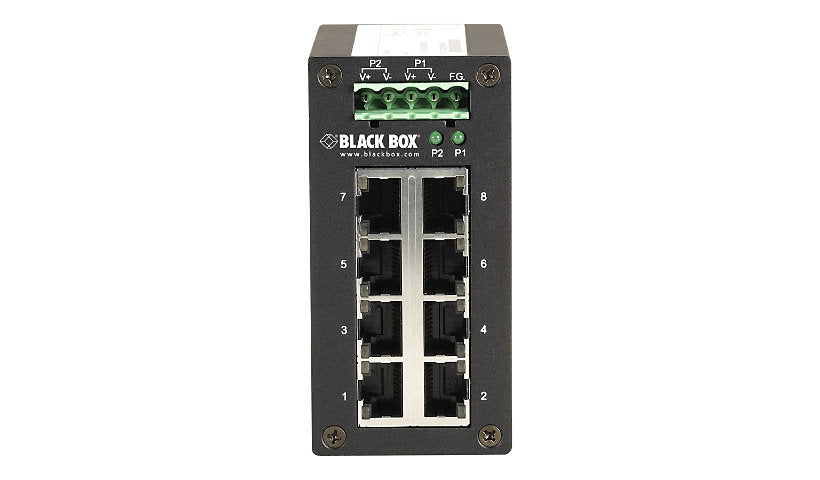

Black Box's LGH008A is rated for -10 to 70 °C (14 to 158 °F) and puts eight Gigabit ports into harsh sites. Its steel enclosure mounts on a DIN rail, and dual 9 to 48 V DC inputs allow redundant power. It is TAA compliant.
Key Features
- 8 x Gigabit RJ-45 ports
- Operating range 14 to 158 °F
- Dual 9-48V DC power inputs
- Rugged steel enclosure
- DIN rail mount kit included
- TAA compliant
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Hardened Gigabit Edge Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Switching Type: Gigabit Ethernet
Features: Auto-sensing per device, Auto-uplink (auto MDI/MDI-X)
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: LAN, Power
Dimensions and Weight
Height: 3.5 inch
Width: 1.8 inch
Depth: 3.1 inch
Weight: 10.58 ounce
Certifications and Listing
Compliant Standards: RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
