Product Information

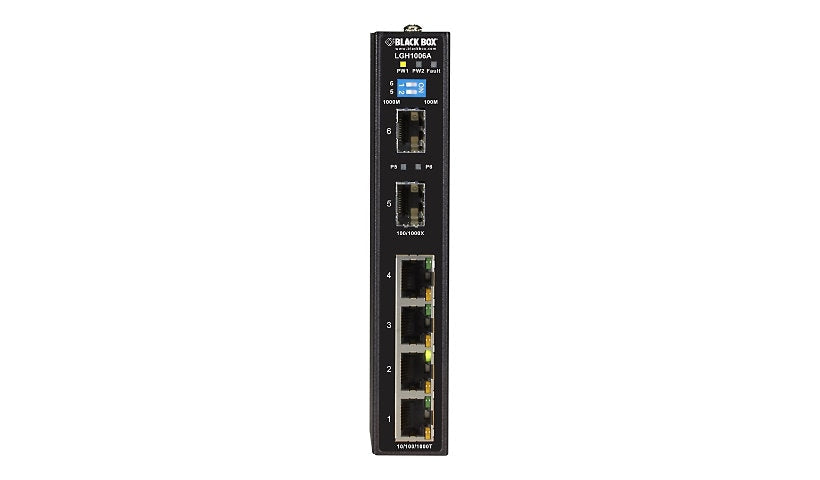

Black Box's LGH1006A combines four Gigabit RJ-45 ports with two SFP slots in a hardened unmanaged switch rated for -40 to 158 °F. It supports redundant power and mounts on a DIN rail or wall.
Key Features
- 4 x Gigabit RJ-45 ports
- 2 x SFP slots
- Operating range -40 to 158 °F
- Redundant power inputs
- DIN rail or wall mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LGH1000 Series
Model: Industrial Ethernet Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
MAC Address Table Size: 1K entries
Features: Auto-negotiation, Auto-polarity, Auto-uplink (auto MDI/MDI-X), Built-in DIP switch, Flow control, Store and forward
Features: 2 external power supply connectors, Power Polarity Reverse Protect
Connectivity
Ports: 4
Port Quantity: 4
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x SFP, 4 x 1000Base-T RJ-45
Power
Power Consumption Operational: 6.4 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Fail, Port status, Power
Dimensions and Weight
Height: 5.7 inch
Width: 1 inch
Depth: 3.7 inch
Weight: 14.46 ounce
Certifications and Listing
Compliant Standards: EN 60950-1, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class A, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
