Product Information

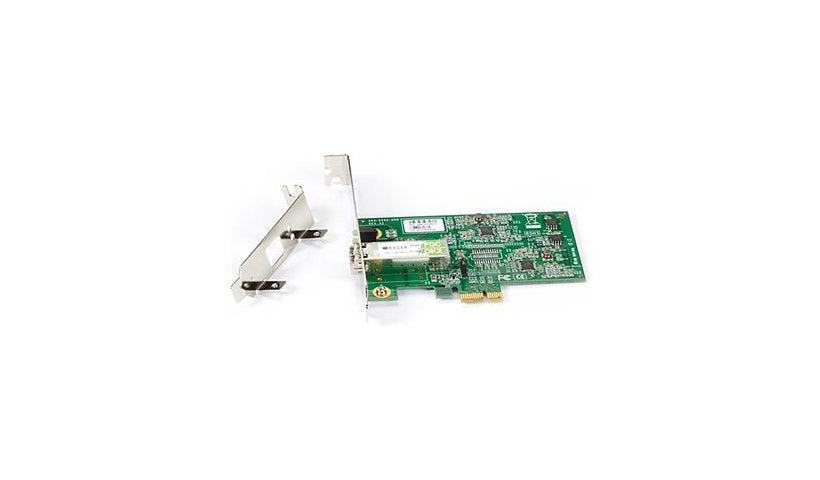

The Black Box LH1690C-LC-R3 is a single port Gigabit fiber network card with a 1000Base-SX duplex LC multimode port at 850 nm, reaching up to 1,800 ft (about 550 m), on a PCI Express x1 interface. Built on the Realtek RTL8168, it suits dense racks, industrial and electrically noisy sites and secure government networks, with LACP link aggregation, trunking and failover, VLANs, jumbo frames and Energy Efficient Ethernet. It works with Windows and comes with Black Box's 2 year Double Diamond warranty.
Key Features
- 1 x 1000Base-SX LC port
- 850 nm multimode
- Up to 550 m
- PCI Express x1
- LACP and failover
- 2 yr Double Diamond warranty
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: IPv6, TCP/IP, UDP/IP
Cable Type: Ethernet 1000Base-SX
Max Transfer Distance (Optical): 1800 ft
Optical Wave Length: 850 nm
Operating System Required: Microsoft Windows
Features: Energy-Efficient Ethernet (EEE), Flow control, Full duplex capability, Jumbo Frames support, Link Aggregation Control Protocol (LACP), TCP/IP checksum offload, Trunking, UDP/IP checksum offload, VLAN filtering, VLAN Tagging
Bundled Services: 2 years Double Diamond Warranty
Connectivity
Bus Voltage: 3.3 V
PCI Specification Revision: PCIe 1.1
Port Quantity: 1
Interface Provided: 1 x 1000Base-SX - LC multi-mode - female - x 2
Network & Adapter Ports: 1000Base-SX
Host Interface: PCI Express x1
Memory and Processor
Processor Brand: Realtek Semiconductor
Processor Number: RTL8168
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity, Port duplex mode
Dimensions and Weight
Height: 2.8 inch
Depth: 4.5 inch
Weight: 2.12 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Compliant Standards: EMI, FCC Class B certified, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
