Product Information

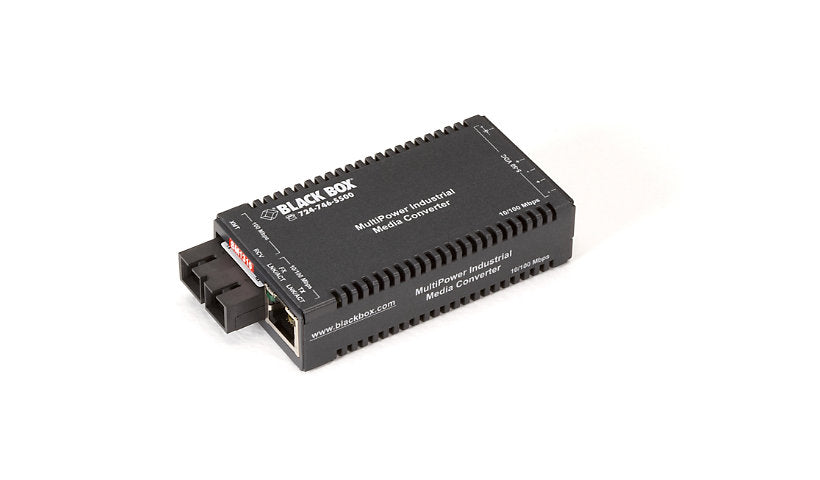

The Black Box LIC025A-R4 MultiPower is an industrial media converter, not a network card. It links a 10/100 RJ-45 copper port to a 100Base-FX single mode fiber port with an SC connector at 1310 nm, reaching up to 24.9 miles (about 40 km). It uses store and forward switching with auto-negotiation, auto MDI/MDI-X and broadcast storm protection. It mounts on a desk or DIN rail, runs from -25 to 70 °C, and takes AC 100 to 240 V or DC 5 to 50 V through a 4 pin terminal block, with DIN rail brackets and a power adapter included.
Key Features
- Media converter, not a NIC
- 10/100 RJ-45 to 100Base-FX
- SC single mode, 1310 nm
- Reach up to 24.9 miles
- -25 to 70 °C operation
- Desk or DIN rail mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box MultiPower
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Cable Type: Ethernet 100Base-FX, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 100 MBps
Max Transfer Distance: 24.9 miles
Optical Wave Length: 1310 nm
Features: 9/125µm core size, Auto Negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast storm protection, Jumbo Frames support (up to 1916 bytes), Store-and-forward technology
Connectivity
Interface Provided: 1 x Ethernet 100Base-FX - SC single-mode female, 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female, 1 x power - 4 pin terminal block
Power Over Ethernet (PoE): PoE
Left Connector SD Type: RJ-45
Right Connector Type (SD): SC single-mode
Power
Device Type: External power adapter
Required Voltage: AC 100-240 V / DC 5- 50 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop / DIN rail mountable
Status Indicators: Link/activity/speed
Dimensions and Weight
Height: 0.8 inch
Width: 1.8 inch
Depth: 3.4 inch
Weight: 10.58 ounce
Included Items
Included Accessories: DIN-rail brackets, Power adapter
Certifications and Listing
Compliant Standards #2: EN 62368
Compliant Standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Compliant Standards: EN 62368
