Product Information

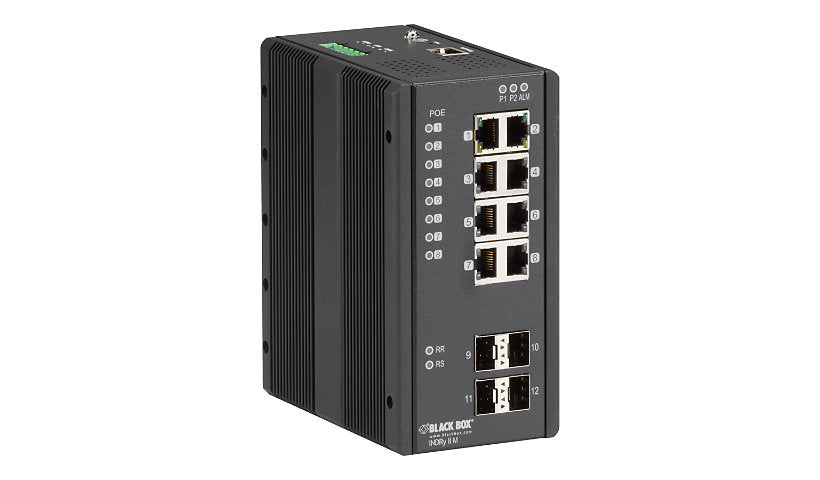

Black Box's LIE1014A is an industrial managed switch with eight Gigabit PoE+ ports at up to 30 W and four multi-speed SFP slots. It runs from -40 to 167 F (-40 to 75 C), has an IP30 rated housing and recovers from link loss in under 20 ms.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x multi-speed SFP slots
- -40 to 167 F operating range
- IP30 rated, link recovery under 20 ms
- LACP, IGMP snooping, QoS
- Desktop, DIN rail or wall mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Industrial Managed Ethernet PoE+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SSH, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2
Capacity: IGMP groups: 255, Queues per port: 4, VLANs supported: 256
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: Back Pressure Support, DHCP support, Flow control, Full duplex mode, Half duplex mode, IGMP filtering, IGMP snooping, IGMP throttling, IP address filtering, Link Aggregation Control Protocol (LACP), LLDP support, MAC address filtering, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), Syslog support, Tagged VLAN, Traffic shaping, Type of Service (ToS), VLAN support, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 12
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): SFP (mini-GBIC)
Interface Provided: 1 x console RJ-45, 4 x SFP, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Supplies Installed: 2
Memory and Processor
RAM Installed: 512 kilobyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 25 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, DIN rail mountable, Wall-mountable
Dimensions and Weight
Height: 6.1 inch
Width: 2 inch
Depth: 4.3 inch
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Compliant Standards: CISPR 22 Class A, EN 61010-1, EN55022, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP30, RoHS, UL 508, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
