Product Information

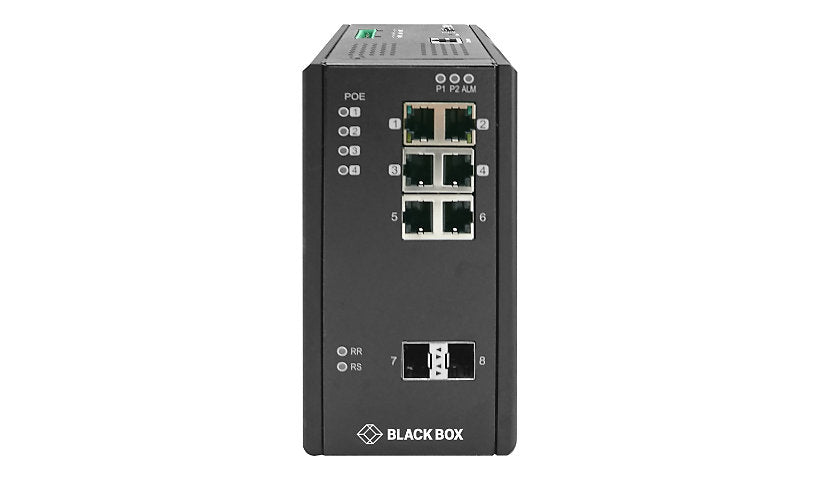

Black Box's LIE1082A is a compact L2+ managed switch for harsh sites, with six Gigabit PoE+ ports at up to 30 W and two Gigabit SFP fiber uplinks. It runs from -40 to 167 F, mounts on a DIN rail or wall and is TAA compliant. The external power adapter is not included.
Key Features
- 6 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 2 x Gigabit SFP uplinks
- -40 to 167 F operating range
- L2+ managed, IGMP, storm control
- DIN rail and wall kits, terminal block included
- Power adapter not included
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Industrial
Model: Extreme Temperature
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 2+
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2
Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: IGMP multicast groups: 255, QoS queues: 8
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: 512KB packet buffer, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Crossover detection, DHCP support, Failover protection, Firmware upgradable, IGMP filtering, IGMP immediate leave, IGMP querier, IGMP snooping, IGMP throttling, IP address filtering, Link Aggregation Control Protocol (LACP), LinkLoss, MAC address filtering, Management Information Base (MIB), Management Information Base (MIB) II, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Network Access Control (NAC), Network Timing Protocol (NTP), Port trunking, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Rugged, SNTP support, Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Traffic shaping, Trunking, VLAN Double Tagging (Q-in-Q), VLAN support, VLAN Tagging, Weighted Round Robin (WRR)
Connectivity
Ports: 8
Port Quantity: 6
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x console RJ-45, 2 x Gigabit LAN SFP, 6 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter (not included)
Power Supplies Supported: 2
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: 25 Year
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Alarm, Link/activity, PoE, Power
Dimensions and Weight
Height: 6.1 inch
Width: 4.3 inch
Depth: 2.4 inch
Weight: 2.2 lbs
Included Items
Included Accessories: 8-port dust covers (RJ-45), DIN-rail bracket, Power terminal block, Wall mounting kit
Certifications and Listing
Compliant Standards: CISPR 22 Class A, EN 61010-1, EN55022, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP30, NEMA TS-2, RoHS, UL 508, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
