Product Information

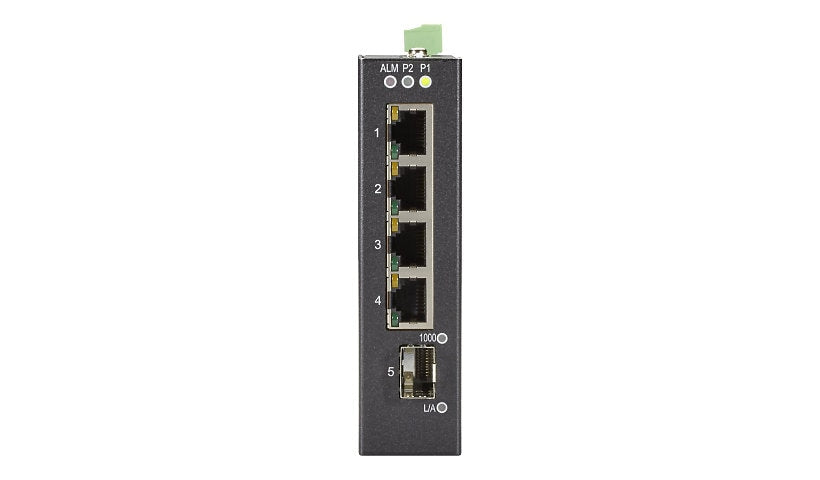

Black Box's LIG401A (INDRy II S) is a fanless unmanaged switch with four Gigabit RJ-45 ports and one SFP slot, rated -40 to 75 °C for factories, oil and gas sites, vehicles and surveillance. It offers QoS and storm control and mounts on a desk, DIN rail or wall.
Key Features
- 4 x Gigabit RJ-45 ports
- 1 x SFP slot
- Operating range -40 to 167 °F
- QoS, broadcast and multicast storm control
- Fanless, DC power
- Desktop, DIN rail or wall mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box INDRy II
Model: S
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Capacity: Queues per port: 4
MAC Address Table Size: 2K entries
Jumbo Frame Support: 9KB
Features: Broadcast Storm Control, Fanless, Flow control, Multicast Storm Control, Quality of Service (QoS), Traffic shaping, Type of Service (ToS)
Features: 2 external power supply connectors
Connectivity
Ports: 5
Port Quantity: 4
Port Type: 10/100/1000
Ports (2nd) Quantity: 1
Ports Type (2nd): SFP (mini-GBIC)
Interface Provided: 1 x SFP, 4 x 1000Base-T RJ-45
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 25 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, DIN rail mountable, Wall-mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 4.3 inch
Width: 1.1 inch
Depth: 3.5 inch
Certifications and Listing
Compliant Standards: CISPR 22 Class A, EN 61010-1, EN55022, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP30, UL 508
Compliant Standards: IEEE 802.1p, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
