Product Information

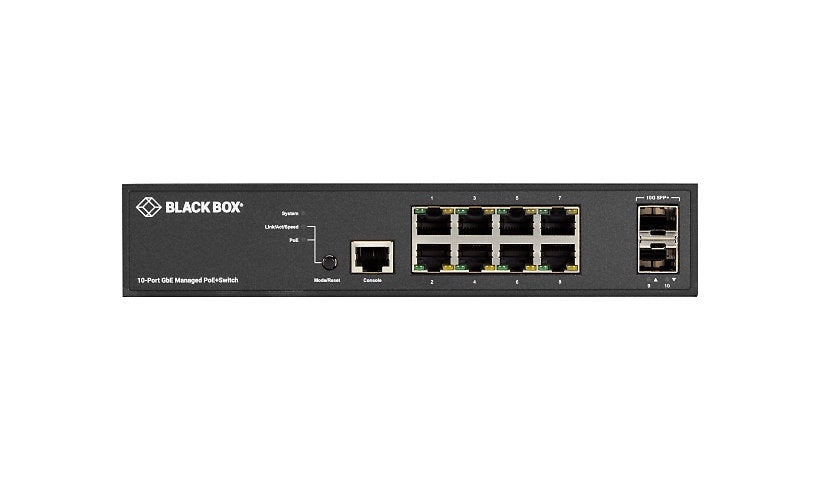

Black Box's LPB3010A is a managed Layer 2 switch with eight Gigabit PoE+ ports on a 130 W budget and two 1/10G SFP+ uplinks, with 56 Gbps of capacity. It supports SNMP, LACP, MSTP, IGMP and port mirroring and can sit on a desk or mount on a wall. This is a PoE switch, not an injector.
Key Features
- 8 x Gigabit PoE+ ports
- 2 x 1/10G SFP+ uplinks
- 130 W PoE budget
- 56 Gbps switching capacity
- Managed: SNMP, LACP, MSTP
- Desktop or wall mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LPB3000 Series
Model: LPB3010A
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: RADIUS, TACACS+
Encryption: SSL
Performance: Forwarding capacity: 14.666 Mpps, Switching capacity: 56 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Features: DHCP client, DHCP relay, IGMP proxy, IGMP querier, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Syslog support, VLAN support
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x console RJ-45, 2 x Gigabit / 10Gbit LAN SFP+ uplink, 8 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
PoE Budget: 130 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 9.5 inch
Weight: 5.07 lbs
Included Items
Included Accessories: 4 rubber feet, Mounting kit
Cables: 1 x console cable
Certifications and Listing
Compliant Standards: FCC
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
