Product Information

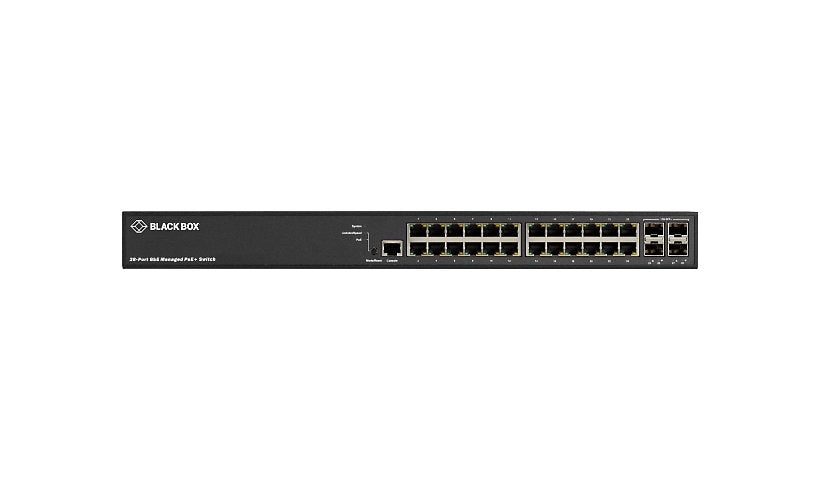

Black Box's LPB3028A is a managed switch with 24 Gigabit PoE+ ports on a 370 W budget and four 1/10G SFP+ uplinks, with 128 Gbps of capacity. It supports SNMP, LACP, MSTP, IGMP and port mirroring, and works on a desk or in a rack. This is a PoE switch, not an injector.
Key Features
- 24 x Gigabit PoE+ ports
- 4 x 1/10G SFP+ uplinks
- 370 W PoE budget
- 128 Gbps switching capacity
- Managed: SNMP, LACP, MSTP
- Desktop or rack mount
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box LPB3000 Series
Model: LPB3028A
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: RADIUS, TACACS+
Encryption: SSL
Performance: Forwarding capacity: 95 Mpps, Switching capacity: 128 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 10240 bytes
Features: DHCP client, DHCP relay, IGMP proxy, IGMP querier, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Syslog support, VLAN support
Connectivity
Ports: 28
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x console RJ-45, 24 x 1000Base-T RJ-45 PoE+, 4 x Gigabit / 10Gbit LAN SFP+ uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 8.38 lbs
Included Items
Included Accessories: 4 rubber feet, Mounting kit
Cables: 1 x console cable
Certifications and Listing
Compliant Standards: FCC
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
