Product Information

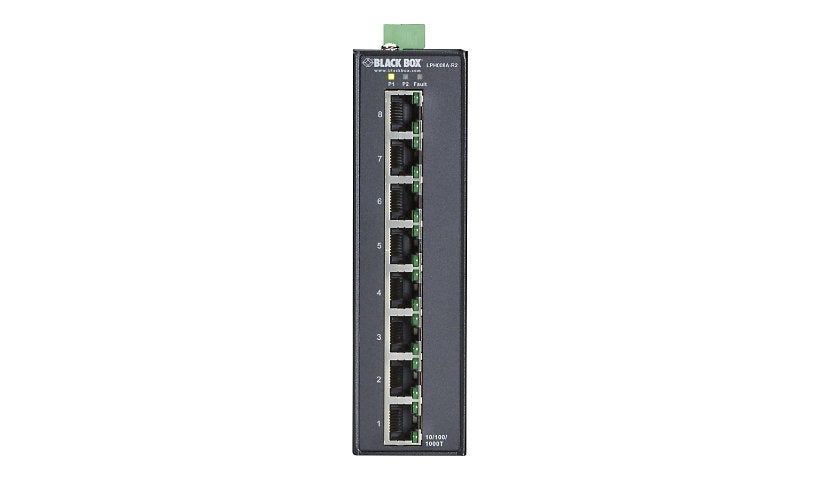

Black Box's LPH008A-R2 delivers PoE+ at up to 30 W per port on eight Gigabit ports with a 120 W total budget. This hardened unmanaged switch runs from -40 to 167 °F, takes dual DC inputs, includes a DIN rail bracket and is TAA compliant.
Key Features
- 8 x Gigabit PoE+ ports, 30 W each
- 120 W PoE budget
- Industrial unmanaged switch
- Operating range -40 to 167 °F
- Dual DC power inputs
- DIN rail bracket
- TAA compliant
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Industrial
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: Built-in DIP switch, Flow control, Over-current protection, Power Sourcing Equipment (PSE), Store and forward
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Interface Provided: 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Power Consumption Operational: 6 watt
PoE Budget: 120 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 10 - 90%
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Status Indicators: Link/activity, PoE, Power
Dimensions and Weight
Height: 5.7 inch
Width: 1.6 inch
Depth: 3.7 inch
Included Items
Included Accessories: 2 mounting brackets, 3 x M3 screws, 8-port dust covers (RJ-45), DIN-rail bracket
Certifications and Listing
Compliant Standards: E Mark, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class A, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
